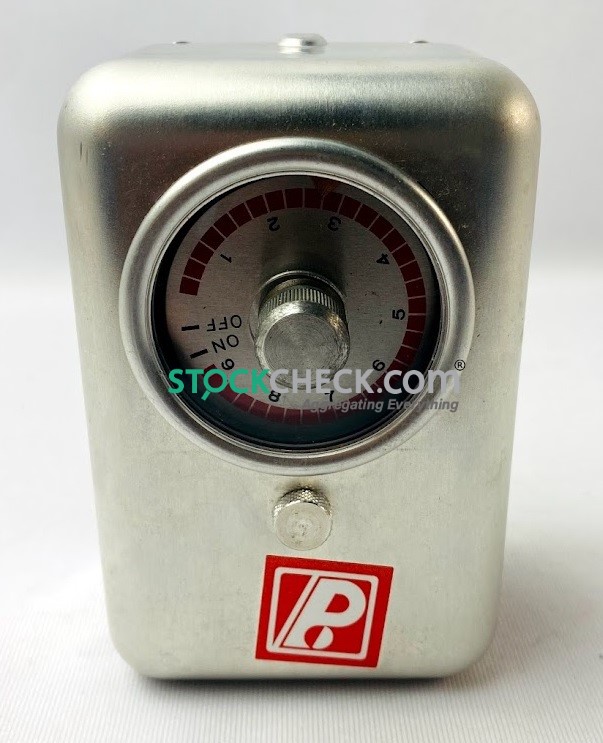

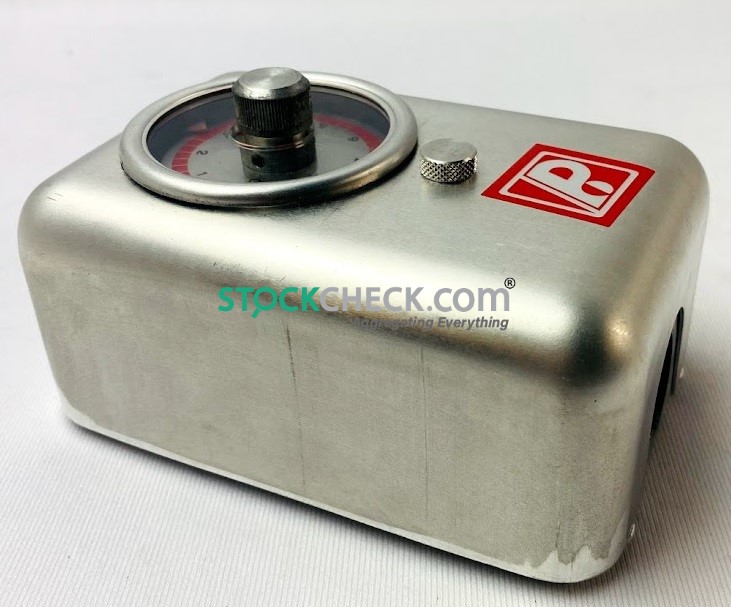

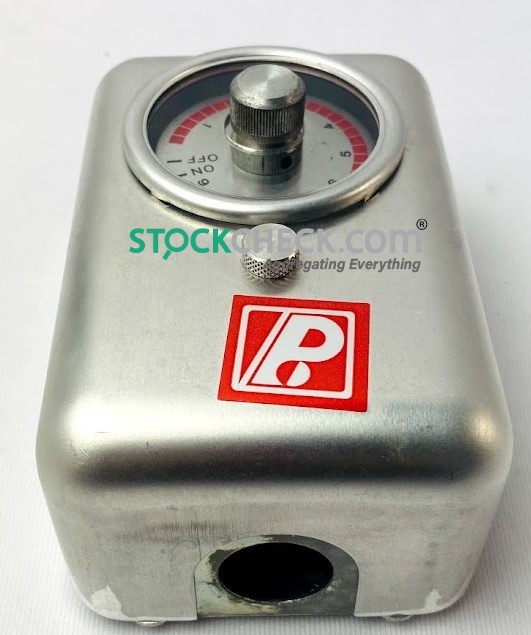

Paragon Electric JW10-20 overview

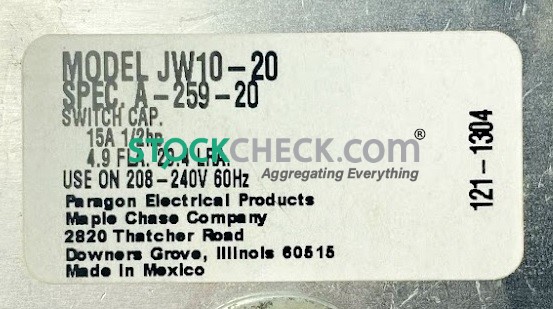

Paragon JW10-20 Series Cycle Repeater Control, SPST Switch Type, 15 Amp Switch Rating Per Pole, 1/2 HP, 240 Volts 60Hz AC Line, 12 Second Graduation, 10 Minute ...
Product details
Manufactured byParagon Electric
Product groupProcess Control Timer
DescriptionParagon JW10-20 Series Cycle Repeater Control, SPST Switch Type, 15 Amp Switch Rating Per Pole, 1/2 HP, 240 Volts 60Hz AC Line, 12 Second Graduation, 10 Minute Range.Aluminum Enclosure. 3-1/2" x 5-1/8" x 2-7/8" (WxHxD). 1 lb Approximate Weight.Paragon’s JW Series are cycle repeater controls that will repeat the selected time cycles as long as power is applied. These controls are most often found in agricultural and industrial applications. Easily installed, they are available in NEMA 3R or NEMA 1 enclosures to meet the requirements of any environment, no matter how rugged.
Key FeaturesON time adjustable from 2% to 90% of full-scale dial means flexibility for users by offering a broad range of ON/OFF combinations. 100% ON or OFF settings allow users to bypass interval mode. Robust, sealed synchronous motor is more durable and reliable. Eight models that cover four dial ranges allow users to meet diverse application requirements. 120-Volt version is UL and CSA listed.
