Product details
Manufactured byNexcom
Product groupCPU Board
DescriptionNexcom EBC-572 CPU Board. 5.25" | Socket 478 Pentium M/Celeron M | 36-bit LVDS | Dual on-board LAN | Analog VGA | up to 2Gb SDRAM | 1x PCI slot

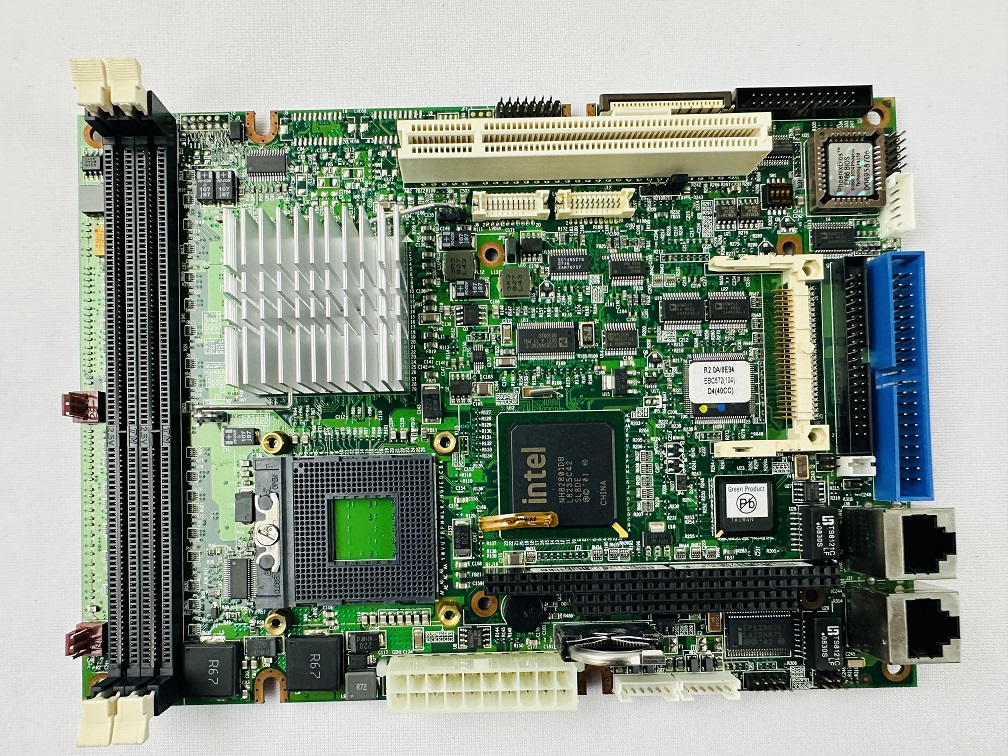

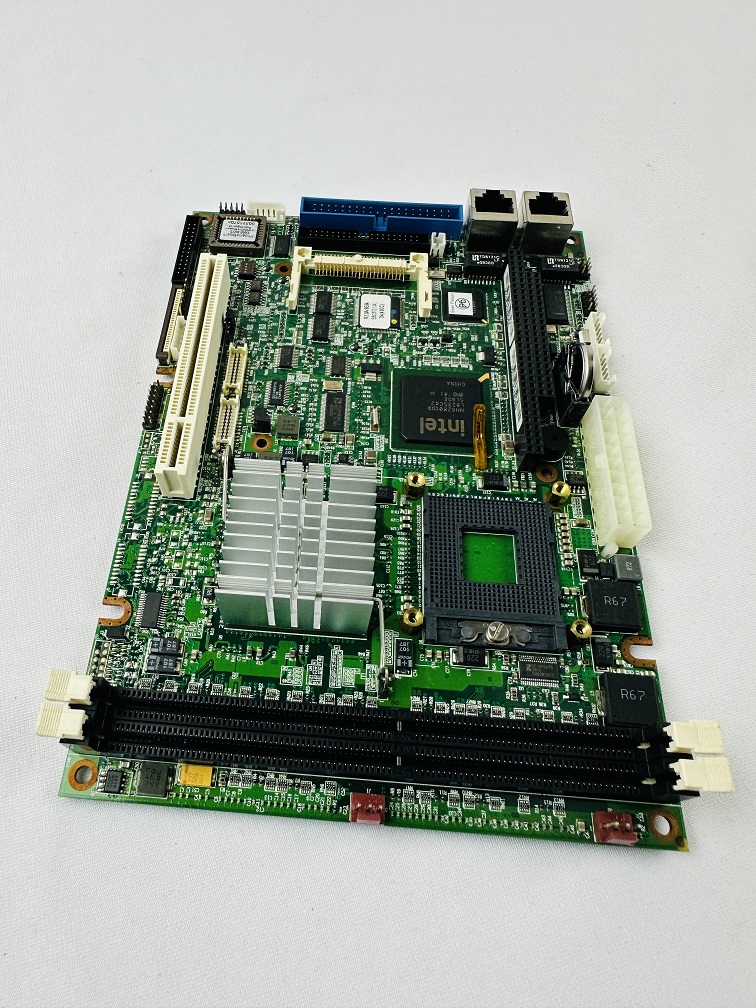

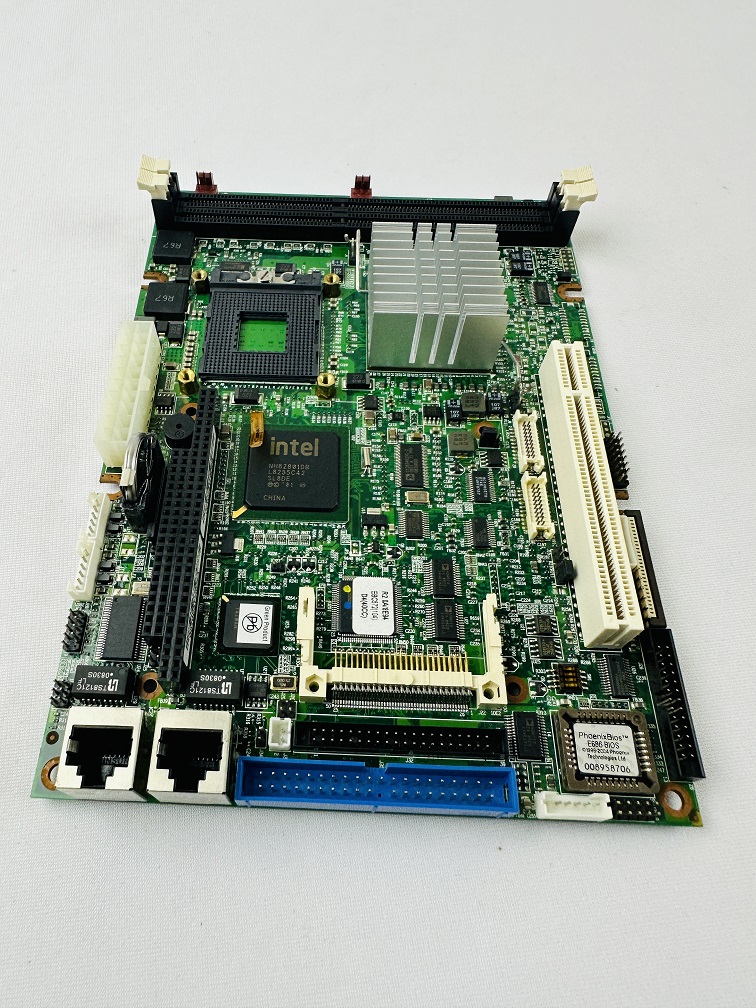

OverviewThe EBC 572 is a 5.25" form factor embedded board computer with socket 478 that supports Intel® Pentium® M/Celeron® M or on-board 479-pin LV/ULV Pentium® M processors with 400 MHz FSB and up to 2 MB L2 cache. The EBC 572 incorporates an Intel® 82852GM or 82855GME and 82801 DB (ICH4) chipset. The Intel® 82855GME supports un-buffered ECC DDR 200/266/333 memory up to 2 GB maximum and an integrated graphic controller with 64 MB of VGA shared memory, a CRT and 36-bit LVDS display interface.The low power consumption South Bridge ICH4 provides one PCI slot, a PC/104 interface, parallel port, slim type fl oppy connector, 40-pin IDE connector, CompactFlash socket, four serial ports supported by 40-pin header, four USB 2.0 ports supported by two JST 6-pin connectors, two 10/100 LAN ports, an optional audio interface with EBK AC97 module as well as others. The EBC 572 Series with great processor choices, I/O, and display support offer an flexible embedded solution.
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Nexcom
View Nexcom profile
Product group
CPU Board
Explore CPU Board
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
Green Eagle Logistics
EBC572
Verified marketplace seller
7 items available
5 New - Not in Factory Packaging: $1375.00
2 TBD:
| # | Name |
|---|---|
| 1 | EBC572 |
