Nexcom EBC500 overview
Nexcom EBC-500 Series 5.25" Intel® Core™ 2 Duo/ Core™ Duo/ Core™ Solo Embedded CPU Board with 2 x PCIe GbE LAN, 1x PCIe x16, VGA, LVDS, Audio, 6x USB 2.0...
Product details
Manufactured byNexcom
Product group5.25" CPU Board
DescriptionNexcom EBC-500 Series 5.25" Intel® Core™ 2 Duo/ Core™ Duo/ Core™ Solo Embedded CPU Board with 2 x PCIe GbE LAN, 1x PCIe x16, VGA, LVDS, Audio, 6x USB 2.0, 4 COMs

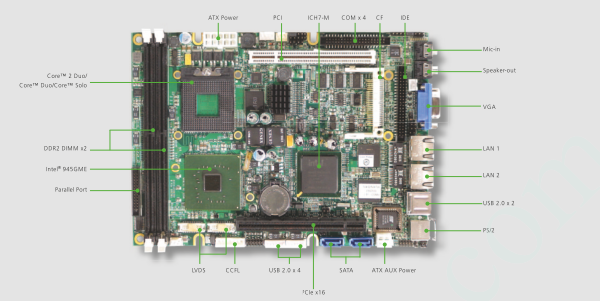

OverviewThe EBC 500 is a 5.25" form factor embedded board computer utilizing the latest Intel® Core™ 2 Duo processor with Intel's 65-nanometer technology" and new micro-architecture. EBC 500 supports Intel® Core™ 2 Duo, Core™ Duo, Core™ Solo, and Celeron® M family processors up to 2.17 GHz with 533/667 MHz FSB and up to 4MB L2 cache. The incorporated mobile Intel® 945GME and ICH7-M DH chipset supports two 240-pin DDR2 DIMM socket up to 2GB un-buffered non-ECC DDR2 533/667 MHz, one PCI express x16 slot for superb graphic display and two PCI express x1 Gigabit Ethernet LAN for fastest network connection. The EBC 500 also supports two SATA, IDE, CF, six USB 2.0, VGA & LVDS, four COM, and Parallel port. The RoHS compliant EBC 500 embedded board computer consumes very low power and is designed to deliver higher processing power with greater performance-per-watt to fit in various environments for embedded applications. The new Intel® Core™ 2 Duo processor in the EBC 500 has a flexible design that is able to create new solutions for various environments.
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Nexcom
View Nexcom profile
Product group
5.25" CPU Board
Explore 5.25" CPU Board
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
| # | Name |
|---|---|
| 1 | EBC 500 |
