✓Product overview Matrox

GEN/F/64/8/LVDS

Matrox GEN/F/64/8/LVDS Image Processor

Sell this part Request a quote

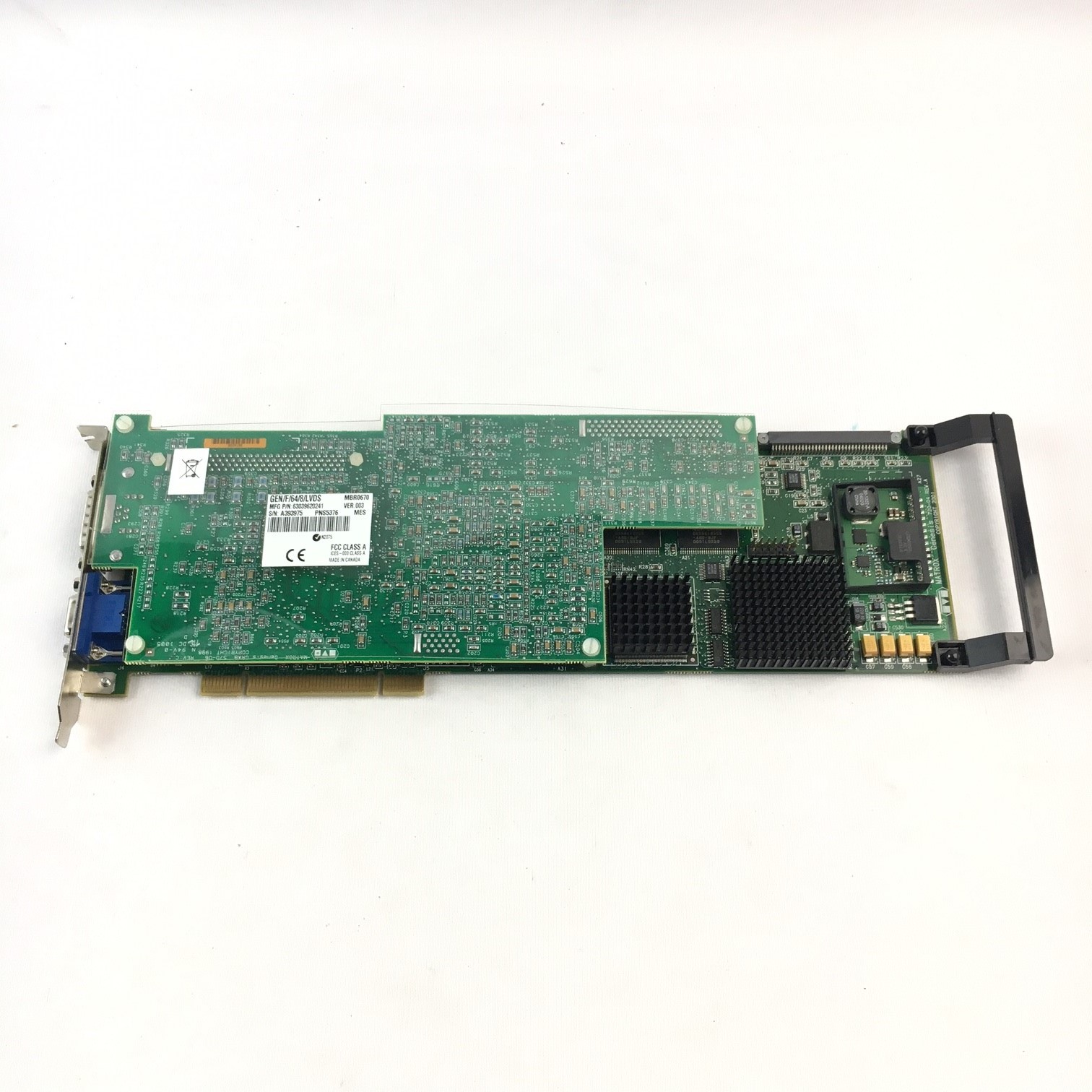

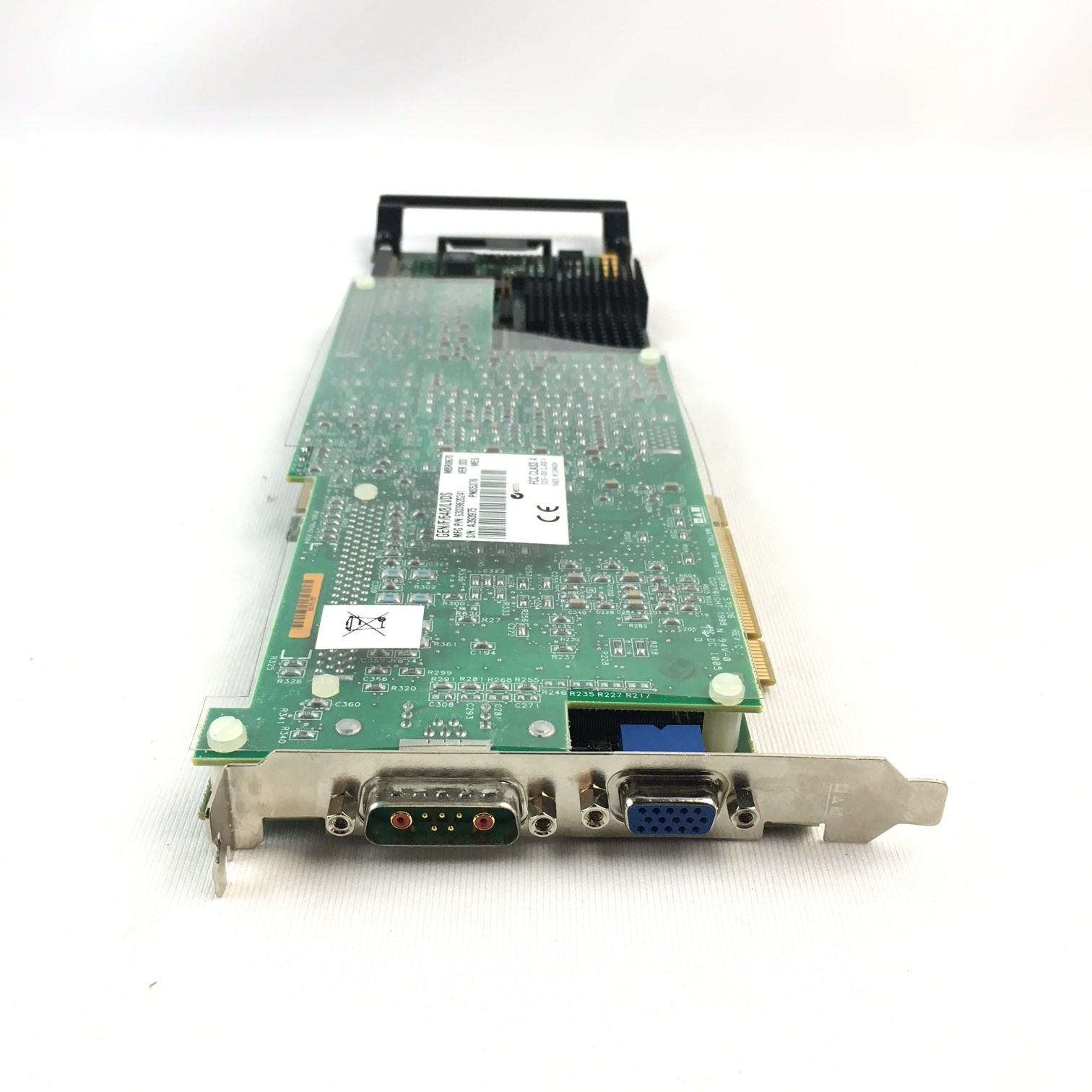

Matrox GEN/F/64/8/LVDS Image Processor
Matrox GEN/F/64/8/LVDS Image ProcessorMatrox GEN/F/64/8/LVDS Image Processor

Matrox GEN/F/64/8/LVDS overview

Matrox GEN/F/64/8/LVDS Image Processor. PCI Vision Processor Main Board | C80/NOA/64MB, Integrated 8 MB Display | LVDS Analog Color/Monochrome Line/Frame Scan Acquisition | for Integrating Acquisition, Processing and DisplayGeneral SpecificationAnalog: 3 software-selectable modes, 4 channel/8-bit mo...

Manufactured byMatrox
Part number or familyGEN/F/64/8/LVDS
Product groupImage Processor

What is Matrox GEN/F/64/8/LVDS?

Matrox GEN/F/64/8/LVDS Image Processor. PCI Vision Processor Main Board | C80/NOA/64MB, Integrated 8 MB Display | LVDS Analog Color/Monochrome Line/Frame Scan Acquisition | for Integrating Acquisition, Processing and DisplayGeneral SpecificationAnalog: 3 software-selectable modes, 4 channel/8-bit mo...

Product details

Manufactured byMatrox
Product groupImage Processor
DescriptionMatrox GEN/F/64/8/LVDS Image Processor. PCI Vision Processor Main Board | C80/NOA/64MB, Integrated 8 MB Display | LVDS Analog Color/Monochrome Line/Frame Scan Acquisition | for Integrating Acquisition, Processing and DisplayGeneral SpecificationAnalog: 3 software-selectable modes, 4 channel/8-bit mode at up to 35 MHz, 2 channel/8-bit mode at up to 70 MHz, 1 channel/8-bit mode at up to 140 MHz. PLL range: 5-35 MHz. programmable clock phase: 0°, 90°, 180° and 270°. programmable gain, offset and DC restorationData interface: custom Matrox Video Interface ASIC (VIA) performs optimized transfers between acquisition, display and processing; between boards, and to external resources (i.e., host)Digital: onboard up to 32-bit wide TTL input at up to 30 MHz. optional digital input companion board provides up to. 32-bit wide RS-422 at up to 25 MHz and LVDS at up to 40 MHzPDisplay section: Matrox MGA 2064W graphics engine. 6 MB WRAM image frame buffer. 2 MB WRAM overlay frame buffer. resolutions up to 1600 x 1200 @ 85 Hz refresh rate. supports 1200 x 1600 portrait display mode. non-destructive overlay of text and graphics.Hardware Specifications Acquisition: monochrome or color, standard or non-standard, analog or digital, frame scan or line scan, up to 64K pixels per line and 64K linesPreprocessing: 10 MHz low pass filter (can be bypassed)Processing node: TI's TMS320C80 DSP @ 50 MHz. Matrox's Neighborhood Operations Accelerator (NOA) @ 50 MHz. 64 MB SDRAM. Matrox Video Interface ASIC (VIA.) Up to 13 nodes in a system

Manufacturer, product group, and supply

See who makes this product, where it belongs, and where available inventory may be listed.

Manufactured by Matrox View Matrox profile
Product group Image Processor Explore Image Processor
Available from 1 marketplace offer Compare sellers and inventory


Where to buy

Total 1 item.
Green Eagle Logistics GEN/F/64/8/LVDS
Verified marketplace seller
1 item available

1 For Parts Only - May not function as designed:

Request Quote
