Lanner Electronics AP-486LH overview

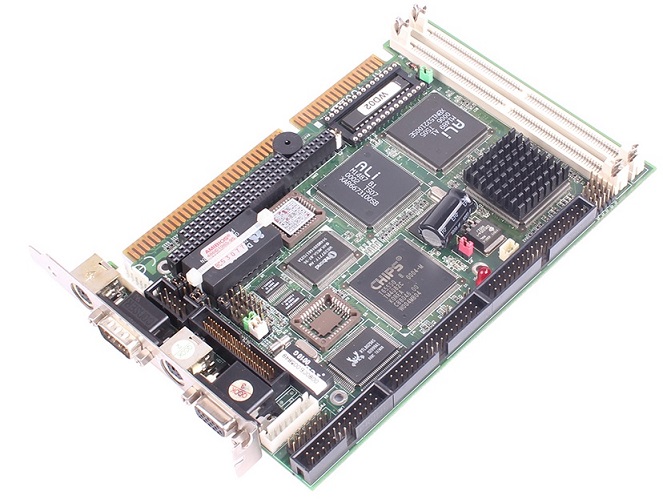

Lanner Electronics AP-486LH CPU Board; Half-Size 486 Single Board Computer with VGA/LCD/LAN & 5x86-133 CPU Simple Type: CPU Board AMD 5x86-133 CPU on boardC&T 6...
Product details
Manufactured byLanner Electronics
Product groupModules
DescriptionLanner Electronics AP-486LH CPU Board; Half-Size 486 Single Board Computer with VGA/LCD/LAN & 5x86-133 CPU Simple Type: CPU Board
Key FeaturesAMD 5x86-133 CPU on boardC&T 65550 VGA/LCD, on-board 2MB VRAMSupport 10Mbps Ethernet1 x RS-232, 1 x RS-232/422/485 serial port2 x SIMM, 2 x IDE, 1 x PC/104Socket for DiskOnChipWatchdog Timer
SpecificationsBIOS: Award / AMI licensed BIOSBoard Type: Half SizeCache Memory: 128KB~512 KB L2 cache memory (default 256 KB)Chipset: ALI M1489/M1487 , C&T 65550, Realtek 8029AS and Winbond 977TF I/O ChipsetCPU: On board AMD 5x86 -133 CPUDimensions: 185 x 122 mm ( 7 1/4" x 4 5/6" inches )DMA: 8 DMA channelsEthernet: On board Realtek 8029AS support 10 Base-TExpansion BUS: Built-in PC/104 expansion busExternal Power Connector: 8-pin external power connectorFlash Memory Disk: Reserved socket for DiskOnChip from M-System , support up to 144 MB flash memory diskHumidity: 5% ~ 95%, non-condenseIDE Interface: 1 IDE port supports up to 2 IDE devicesInterrupts: 16 levels of hardware interruptsIR Interface: Support one IrDA headerKeyboard connector: On-board 5-pin header and 6-pin Mini-Din PS/2 keyboard connectorMouse Connector: On-board 6-pin Mini-Din PS/2 mouse connectorOperating Temperature: 0 degree C ~ 60 degree CParallel Port: 1 multi-mode parallel port ( SPP / EPP / ECP )Processor: AMD 5x86 133RTC: Dallas RTC module or compatibleSerial Port: 2 x 16550 compatible FIFO RS-232 serial ports , 1 x RS-232 and 1 x RS-232/422/485System Memory: 2 x 72-pin SIMM sockets up to 128 MB for FPM/EDO DRAMVGA/LCD: C&T 65550 chipset with 2MB video memoryWatchdog Timer: 8-level time-out intervals ( 0.5 / 1 / 2 / 4 / 8 /16 / 32 / 64 sec. )Floppy Drive Interface: 1 FDD port supports up to two floppy devices
