✓Product overview Kontron

886LCD/ATX

Kontron · Industrial CPU Boards

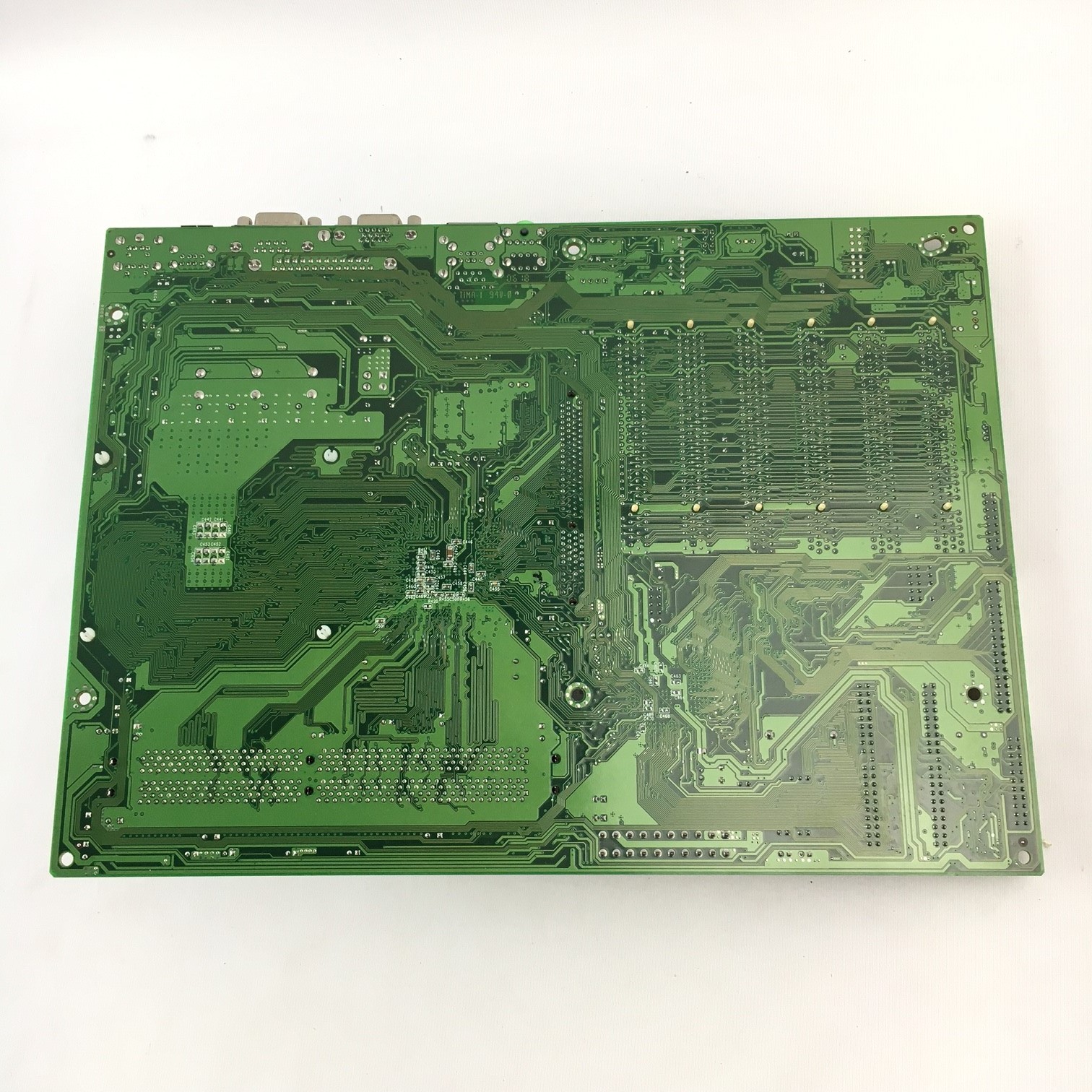

Kontron 886LCD/ATX

Images are for reference only. The actual item may differ in appearance, labeling, revision, firmware or condition. Please verify the part number and specifications before ordering.

Kontron 886LCD/ATXKontron 886LCD/ATX

Kontron 886LCD/ATX overview

886LCD/ATX is an industrial CPU board made by Kontron. Kontron 886LCD/ATX CPU Board | Supports Intel Pentium 4, Celeron D & Celeron Embedded ATX Motherboard. ATX & ATXU Embedded Motherboard Intel® Pentium® 4 , Celeron® D and Celeron® Processors CPU speed from 1.6 GHz to 3.2 GHz, FSB 400/533 MHz Intel® 845GV + ICH4…

Manufactured byKontron
Part number or family886LCD/ATX
Product typeIndustrial CPU Board

Product details

Manufactured byKontron
Product typeIndustrial CPU Board
Description (Existing)Kontron 886LCD/ATX CPU Board | Supports Intel Pentium 4, Celeron D & Celeron Embedded ATX Motherboard.
FeaturesATX & ATXU Embedded Motherboard Intel® Pentium® 4 , Celeron® D and Celeron® Processors CPU speed from 1.6 GHz to 3.2 GHz, FSB 400/533 MHz Intel® 845GV + ICH4 with Intel® Extreme Graphics Digital Flat Panel Display support via ADD Cards (Option) 2x DDR266 SDRAM modules, 2 GByte maximumUp to 6x PCI 2.2 10/100 RJ45 Realtek 8100C based LAN 6x USB 2.0, 2x COM ports AC-97 Audio 2 x ATA100 and 2 x SATA150 with RAID 0/1 support
SpecificationsProcessorIntel® Pentium® 4, Cleron® D and Celeron® from 1.6GHz to 3.2GHz, FSB400/533 MHz, Socket 478ChipsetIntel® 845GV + ICH4,Intel® Extreme Graphics controller,2x 12 bit DVO ports, can be used for one 24 bit digital display port,2 channel Ultra ATA100 bus master controller,3x USB 2.0 host controllers equal to 6x USB 2.0 ports,PCI 2.2 master + arbiterAC-97 2.1 audio supportBIOSAMI™ BIOS, 4Mbit Flash, Plug and Play device detection, support forUSB bootPower ManagementAPM 1.2 and ACPI 1.0a compliant supply monitor, temperature monitor, fan monitorVideoOn board VGA port, resolution up to 2048x1536 (QXGA),2x DVO ports for Flat Panel displays,QXGA and 24 bit colour,ADD cards connect to DVO ports,ADD DVI card available,ADD LVDS card available,AGP socket support only ADD cards (not support externalAGP graphics card),Flat panel adaption and design in support

Manufacturer, product group, and supply

See who makes this product, where it belongs, and where available inventory may be listed.

Manufactured by Kontron View Kontron profile
Product type Industrial CPU Board Explore Industrial CPU Board
Available from 1 marketplace offer Compare sellers and inventory


Where to buy


Total 1 item.
Verified marketplace seller
1 item available

1 Certified Pre-Owned: $896.00
