Kontron CP3002 overview

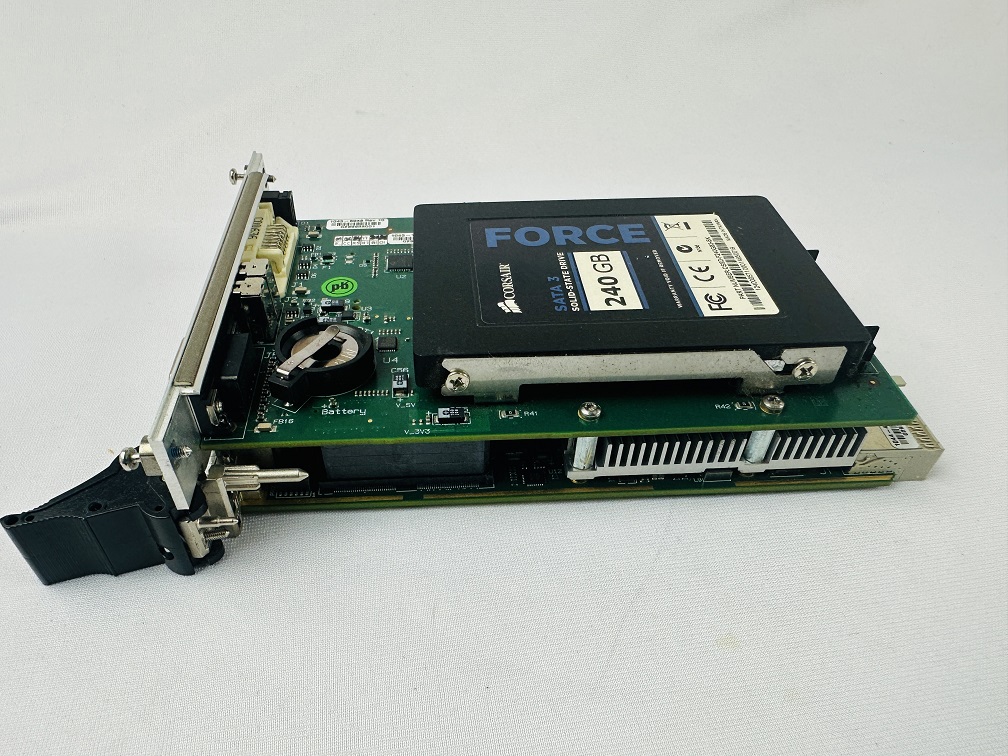

Kontron CP3002 3U CompactPCI CPU Board with Intel Core i7 processor, Mobile Intel QM57 Express Platform Controller Hub. Intel®'s Core™ microarchitecture sets new standards for energy-efficient performance and scalability by use of new technologies such as Intel® Turbo Boost technology and Intel�...
What is Kontron CP3002?
Kontron CP3002 3U CompactPCI CPU Board with Intel Core i7 processor, Mobile Intel QM57 Express Platform Controller Hub. Intel®'s Core™ microarchitecture sets new standards for energy-efficient performance and scalability by use of new technologies such as Intel® Turbo Boost technology and Intel�...
Product details
Manufactured byKontron
Product group3U CompactPCI CPU Board
DescriptionKontron CP3002 3U CompactPCI CPU Board with Intel Core i7 processor, Mobile Intel QM57 Express Platform Controller Hub.
OverviewIntel®'s Core™ microarchitecture sets new standards for energy-efficient performance and scalability by use of new technologies such as Intel® Turbo Boost technology and Intel® Smart Cache. The CP3002 is a highly integrated 3U CompactPCI CPU board based on the Intel® Core™ i7 and Celeron® processor platform combined with the Mobile Intel® QM57 Express Platform Controller Hub.The CP3002 supports the Intel® Core™ i7-610E and Core™ i7-620LE processors with frequencies up to 2.53 GHz for high-performance needs, as well as the ULV processors Core™ i7-660UE and Celeron® U3405 for temperature- and TDP-critical applications. The integrated next-generation graphics core offers superior 3D and video performance resulting in up to doubled graphics performance compared to previous platform designs. Memory demanding applications can make use of up to 8 GB DDR3 SDRAM with Error Checking and Correction (ECC). For onboard data storage, the CP3002 offers up to 32 GB on a dedicated SATA Flash module or an HDD/SSD and CFast option on the 8HP extension module.On the system side, the CP3002 supports a PCI 32-bit, 33MHz CompactPCI interface enabling the passive mode feature. When installed in a system master slot, the CompactPCI interface is enabled, whereas the CompactPCI interface will be isolated when installed in a peripheral slot.
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Kontron
View Kontron profile
Product group
3U CompactPCI CPU Board
Explore 3U CompactPCI CPU Board
Available from
2 marketplace offers
Compare sellers and inventory
Where to buy
Total 2 items.
