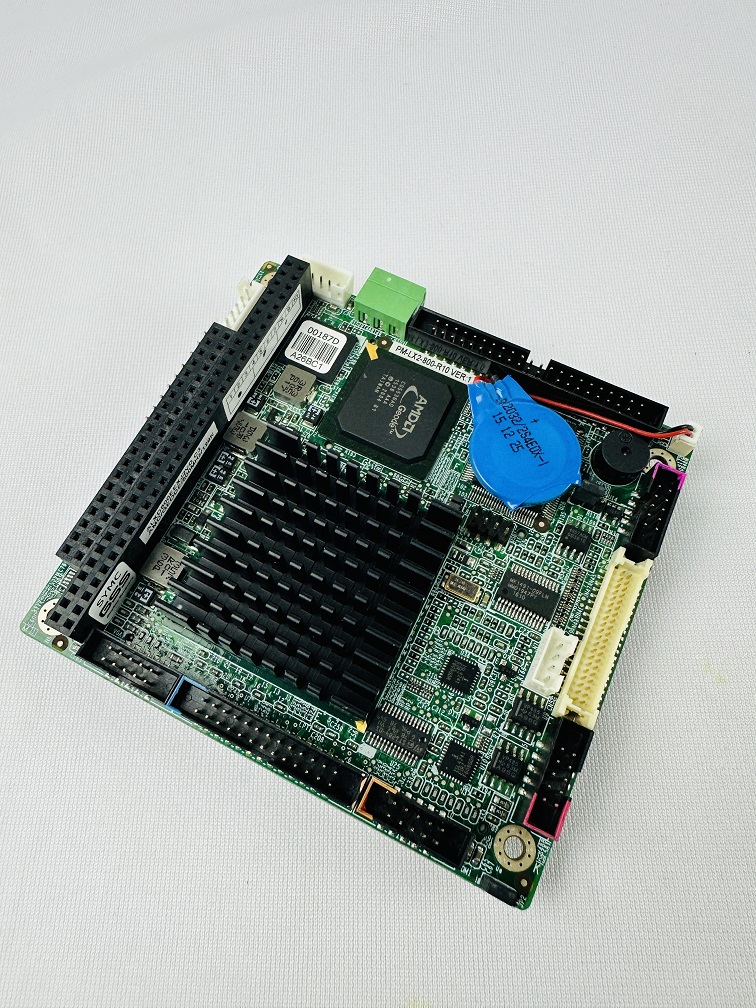

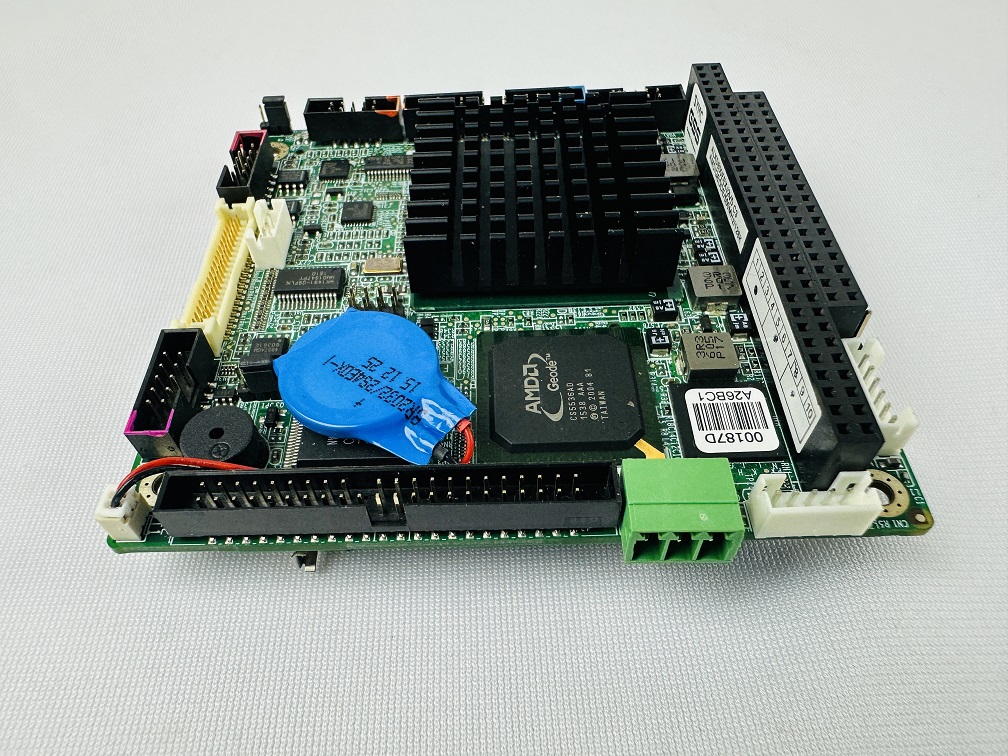

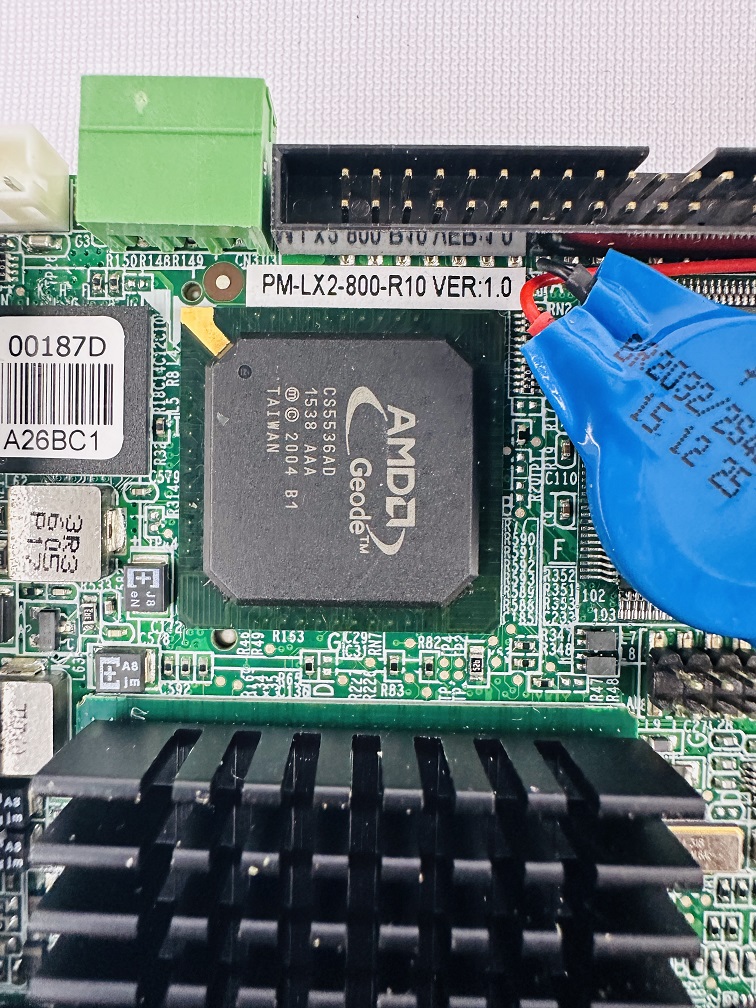

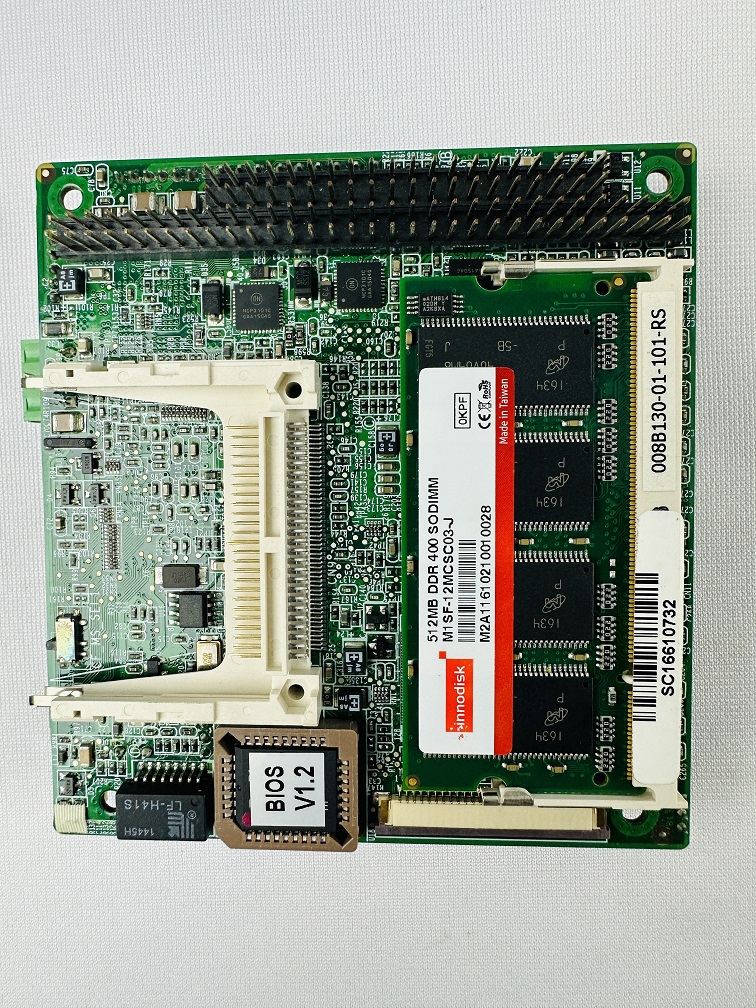

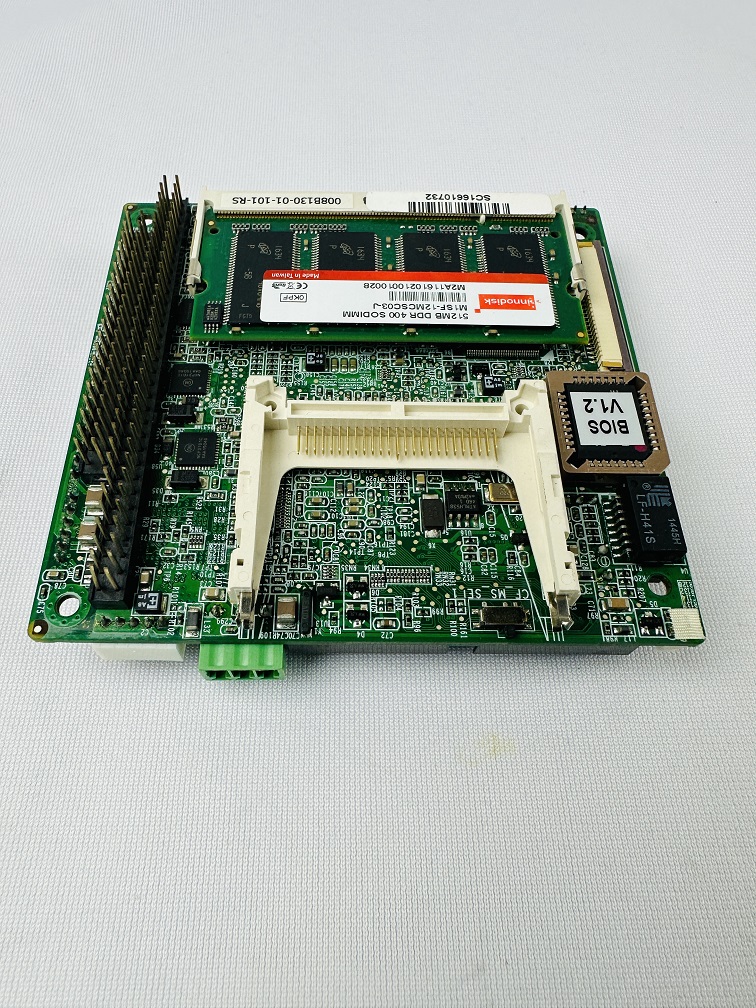

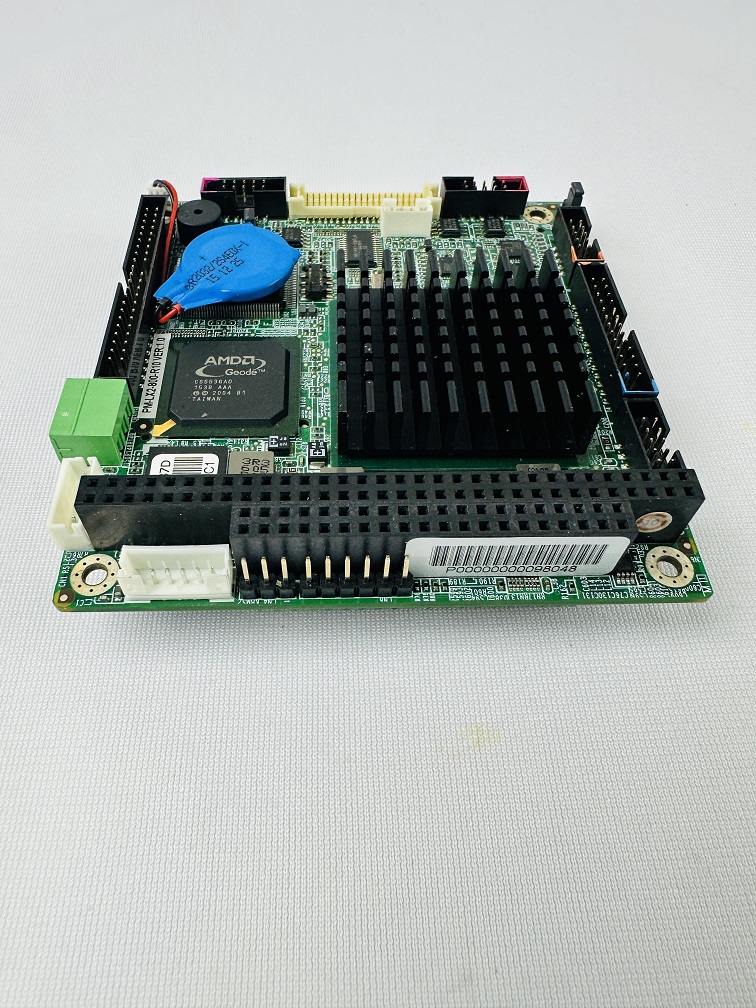

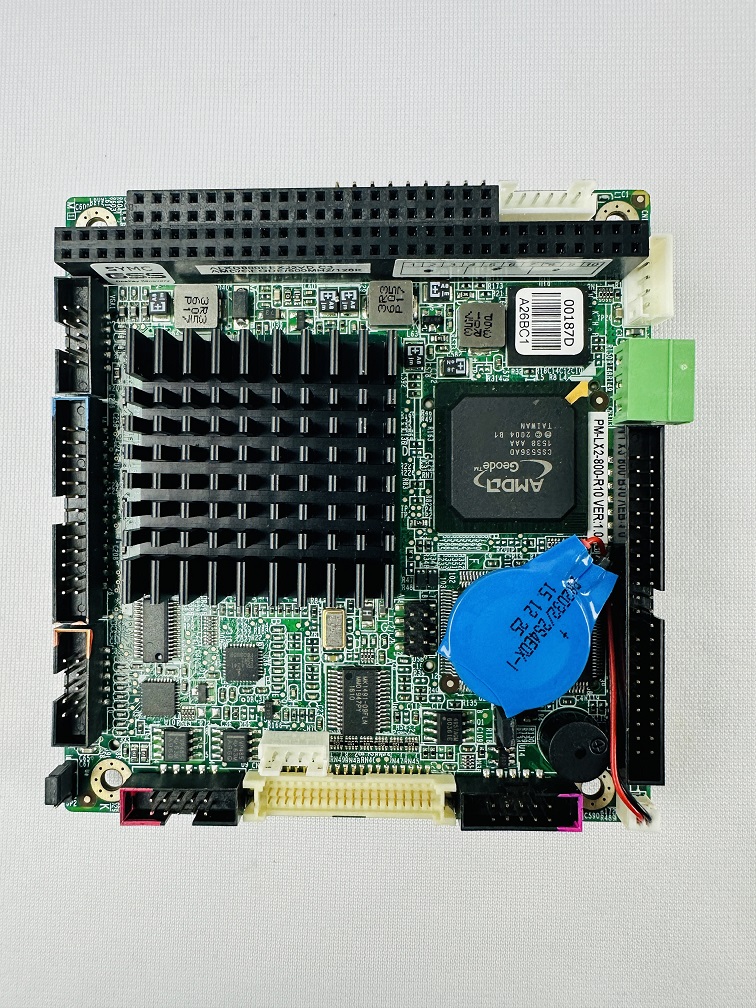

Name: IEI PM-LX2-800-R10 PC/104 CPU Board
Brand: IEI
SKU: PM-LX2-800-R10

IEI PM-LX2-800-R10 overview

IEI PM-LX2-800-R10 PC/104 CPU Board | PC/104 SBC with AMD LX800 500Mhz,VGA/TTL,LAN,USB2.0 and CFII,RoHS CPU: Onboard AMD Geode LX800 (500MHz) ProcessorSystem Chipset: AMD Geode LX800 + Geode CS5536Bios: Award BIOSSystem memory:1 x 200-pin 266/333/400MHz SO-DIMM DDR SDRAM DIMM supported (system max. ...

Manufactured byIEI

Part number or familyPM-LX2-800-R10

Product groupPC/104 CPU Board

What is IEI PM-LX2-800-R10?

Product details

Manufactured byIEI

Product groupPC/104 CPU Board

DescriptionIEI PM-LX2-800-R10 PC/104 CPU Board | PC/104 SBC with AMD LX800 500Mhz,VGA/TTL,LAN,USB2.0 and CFII,RoHS

SpecificationCPU: Onboard AMD Geode LX800 (500MHz) ProcessorSystem Chipset: AMD Geode LX800 + Geode CS5536Bios: Award BIOSSystem memory:1 x 200-pin 266/333/400MHz SO-DIMM DDR SDRAM DIMM supported (system max. 1GB)Ethernet: Realtek RTL8100C 10/100Mbps Ethernet Controller (PCI Interface)I/O Interface: 2 x USB 2.0 (2 by pin-header)1 x LPT2 x RS-2321 x RS-422/4851 x IDE1 x FDD by FPC Connector1 x PS/2 for KB/MS, (6-pin pin-header for KB/MS)Expansion: PC/104 slot (ISA Bus, by PCI to ISA Bridge ITE IT8888G)SSD: CF Type IIDisplay: CRT integrated in AMD Geode LX80024-bit TTL integrated in AMD Geode LX800WDT: Software programmable 1-255 sec. by super I/O SMSC SCH3114(I)-NUPower Supply: +5V only, AT support, 12V for LCD inverter and PC/104 (ISA)Power Consumption: 5V @ 1.09A (AMD Geode LX800 with 512MB DDR400 DRAM)Temperature: 0~60°CHumidity: Operation 5%~95% non-condensingDimension: 95mm x 95mmWeight: GW: 500g; NW 110g

Manufacturer, product group, and supply

See who makes this product, where it belongs, and where available inventory may be listed.

Manufactured by IEI View IEI profile

Product group PC/104 CPU Board Explore PC/104 CPU Board

Available from 1 marketplace offer Compare sellers and inventory

Where to buy

Total 1 item.

Green Eagle Logistics PM-LX2-800-R10

Verified marketplace seller

1 item available

1 New (Surplus) - Never used, not in Original Pack: $995.00

Request Quote
