Diamond Systems RUBY-MM overview

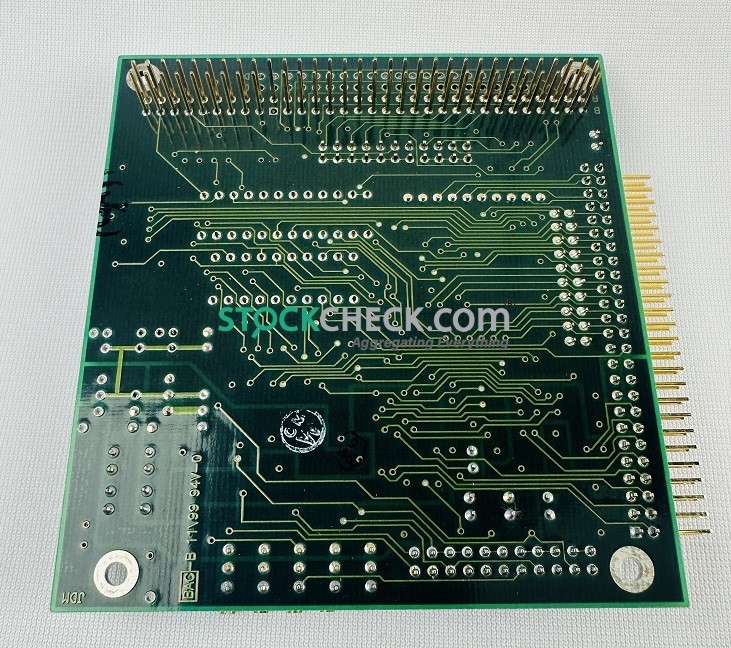

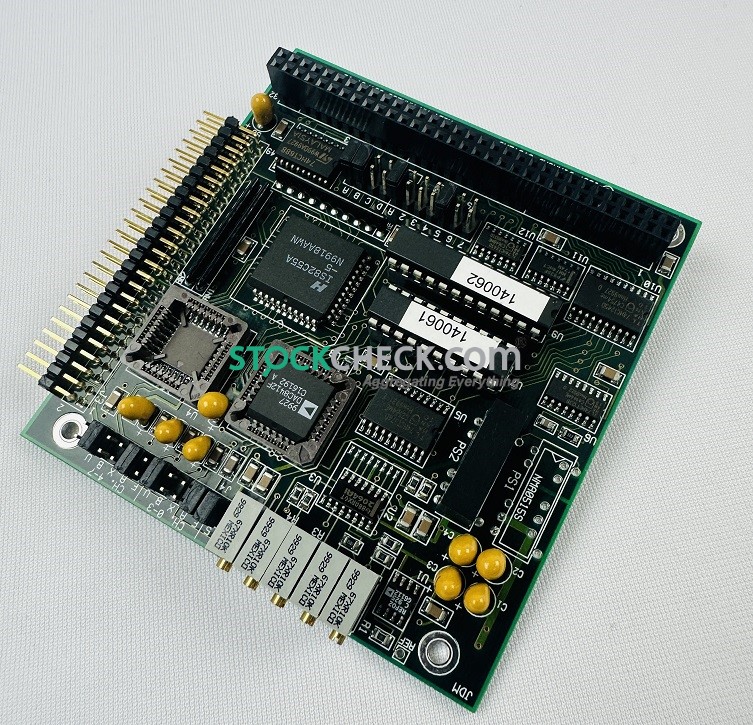

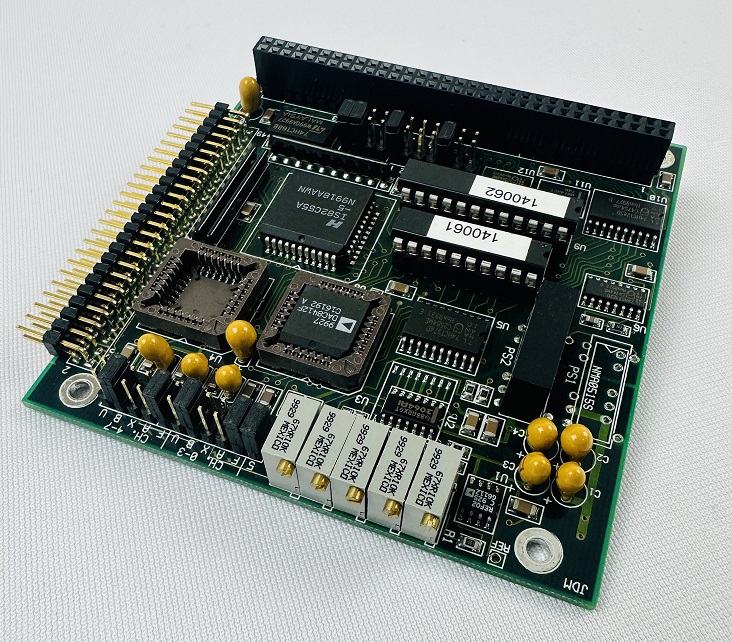

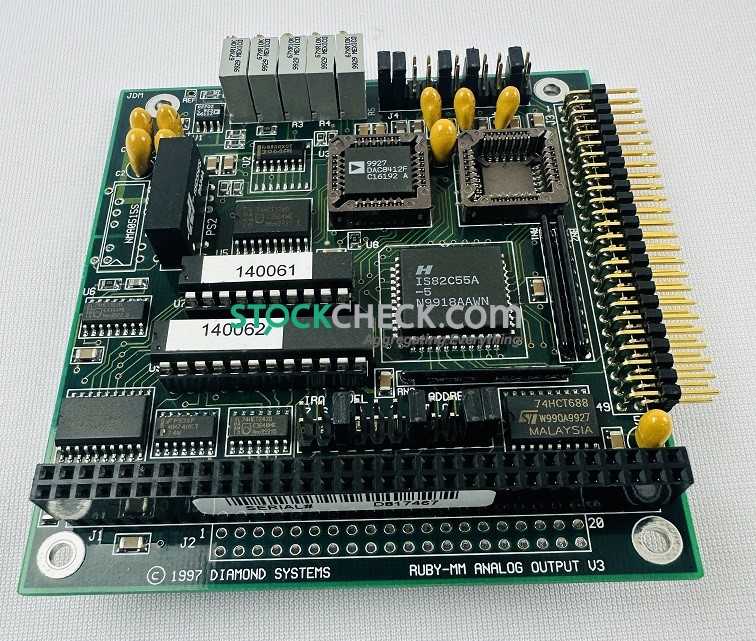

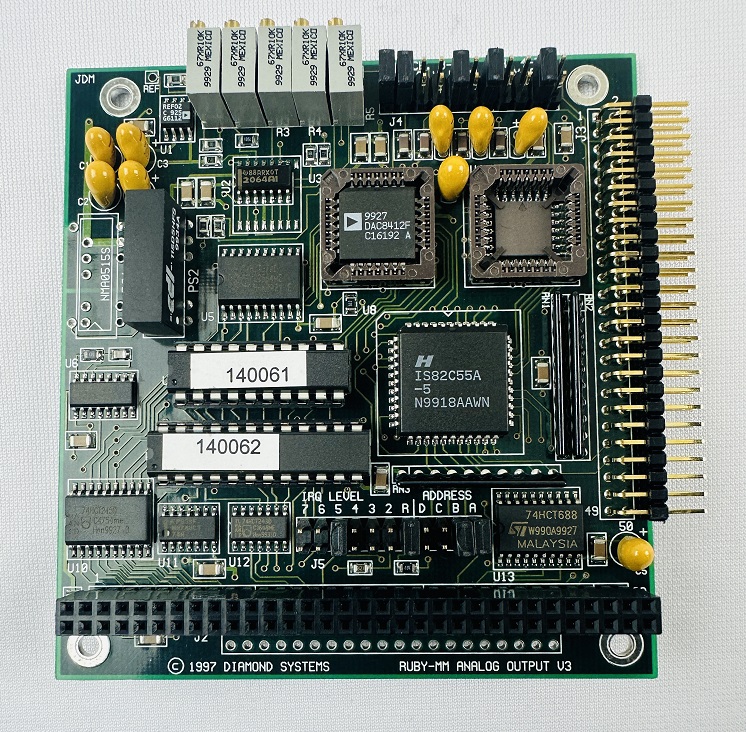

Diamond Systems RUBY-MM Series 12-bit Analog Output PC/104 Module The Ruby-MM series provides 4, 8 or 16 channels of 12-bit resolution analog voltage outputs pl...
Manufactured byDiamond Systems
Part number or familyRUBY-MM
Product groupAnalog Output PC/104 Module
Product details
Manufactured byDiamond Systems
Product groupAnalog Output PC/104 Module
DescriptionDiamond Systems RUBY-MM Series 12-bit Analog Output PC/104 Module
OverviewThe Ruby-MM series provides 4, 8 or 16 channels of 12-bit resolution analog voltage outputs plus 24 digital I/O lines on a single PC/104 module. An on-board precision voltage reference circuit offers analog output ranges of 0-2.5V, 0-5V, and 0-10V in unipolar mode or ±2.5V, ±5V, and ±10V in bipolar mode. All analog outputs can source or sink up to 5mA simultaneously. The analog outputs are based on the DAC8412 quad 12-bit D/A converter chip. This chip resets all outputs to mid-scale on power-up, meaning 0V for bipolar ranges and 1/2 the full-scale voltage for unipolar ranges. To obtain power-on reset to 0V for unipolar ranges, a special-order version is available using the DAC8413 which powers up to zero scale instead. On the 16-channel model, each group of 8 channels can be set for a different output range. On the 4- and 8- channel models, all outputs have the same output range. All outputs are updated simultaneously, either with a software command or in response to an external trigger. The board includes 24 digital I/O lines using an 82C55 chip. All I/O lines have 10K Ohm pull-up resistors for guaranteed logic levels on power-up. Ruby-MM-1612 is designed and tested for extended temperature operation (-40 to +85oC). It requires only +5VDC from the system power supply via the PC/104 bus. Analog ±15V supplies are derived from miniature DC/DC converters on the board. All I/O is contained on a single 50-pin connector compatible with standard .1” connector ribbon cables, such as Diamond Systems’ C-50-18
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Diamond Systems
View Diamond Systems profile
Product group
Analog Output PC/104 Module
Explore Analog Output PC/104 Module
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
Green Eagle Logistics
RUBY-MM
Verified marketplace seller
2 items available
1 New (Surplus) - Never used, not in Original Pack: $995.00
