What is Connect Tech 10404901?

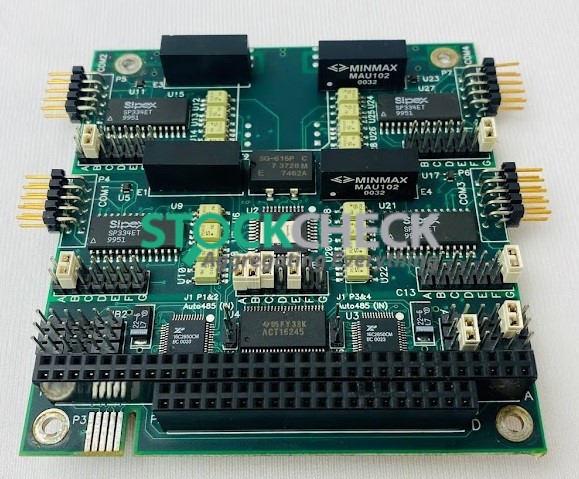

Connect Tech 10404901 XTREME OPTO/104 PC/104 Serial Card. Connect Tech 104049014 XTREME OPTO/104 PC/104 Serial Card. 3kV optical isolation | Supports full duplex (4 wire), half duplex (2 wire) with auto TxD echo cancellation and multi-drop (4 wire) communication modes in RS-422/485 The Xtreme/104 Opto PC/104 serial card performs where others fail. Durable ...
Product details
Manufactured byConnect Tech
Product groupPC/104 Serial Card
DescriptionConnect Tech 104049014 XTREME OPTO/104 PC/104 Serial Card. 3kV optical isolation | Supports full duplex (4 wire), half duplex (2 wire) with auto TxD echo cancellation and multi-drop (4 wire) communication modes in RS-422/485
OverviewThe Xtreme/104 Opto PC/104 serial card performs where others fail. Durable and stackable, Xtreme/104 Opto’s small PC/104 form factor makes it the ideal serial communications link in today’s demanding embedded systems.Xtreme/104 Opto offers 3 kV optical isolation on all signals and ports to ensure smooth, error-free transmission of data even in the noisiest environments. With the added feature of industrial temperature range operation, this PC/104 serial card is well suited to any embedded computer system that is exposed to harsh conditions.Based on the 16C2850 UART with 128 bytes transmit and receive FIFO buffers, Xtreme/104 Opto provides rapid data communications for your military, aerospace, medical, transportation, and industrial automation applications.
FeaturesFlexibility: Two or four RS-232 or RS-422/485 serial portsProtection: Ports are individually optically isolated at 3.0 kV AC* (most models) peak to peakSpeed: Data rates up to 460.8 KbpsPerformance: Ports controlled by a high-performance dual UART, which is backward compatible with standard 16450 and 16550 UARTs.Adaptability: Support for three RS-485 modes: full-duplex, half-duplex, and multi-drop
