Compulab CM-X255 overview
Compulab CM-X255 Computer-On-Module | The CM-X255 module is a tiny system-on-module computer, designed to serve as a building block in embedded applications. Th...
Product details
Manufactured byCompulab
Product groupComputer-on-Module
DescriptionCompulab CM-X255 Computer-On-Module | The CM-X255 module is a tiny system-on-module computer, designed to serve as a building block in embedded applications.

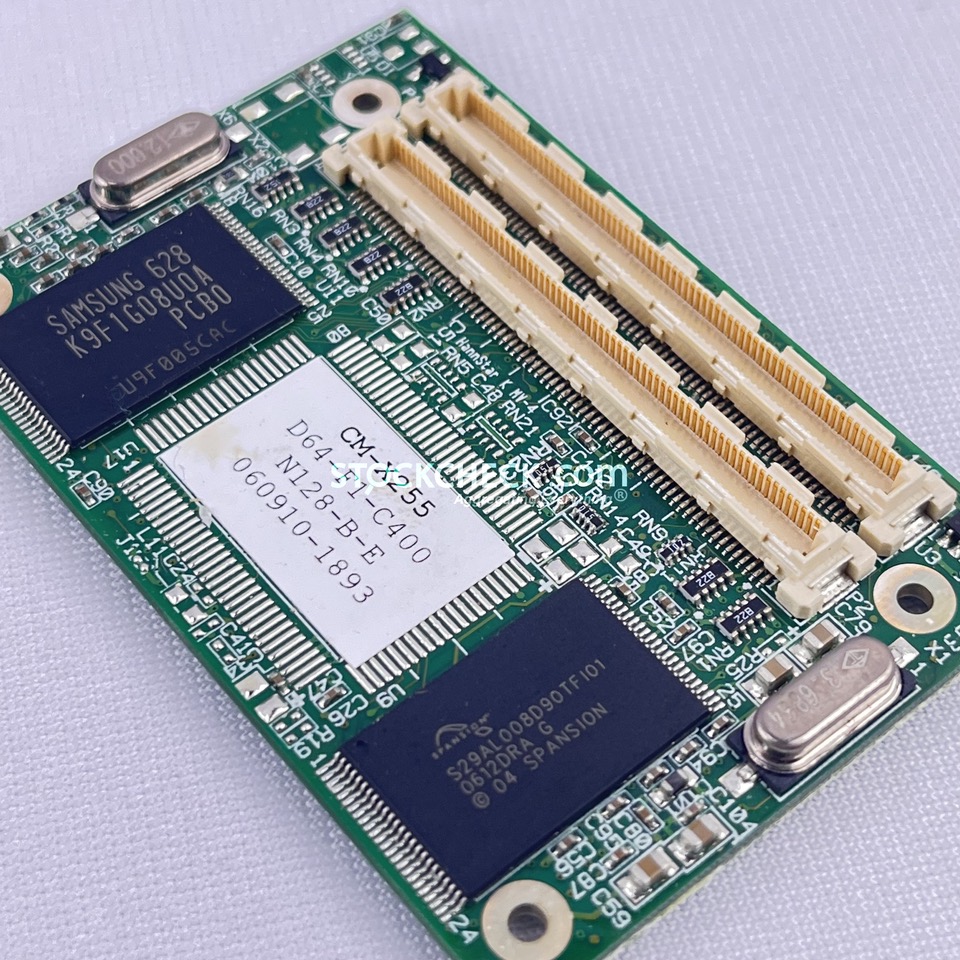

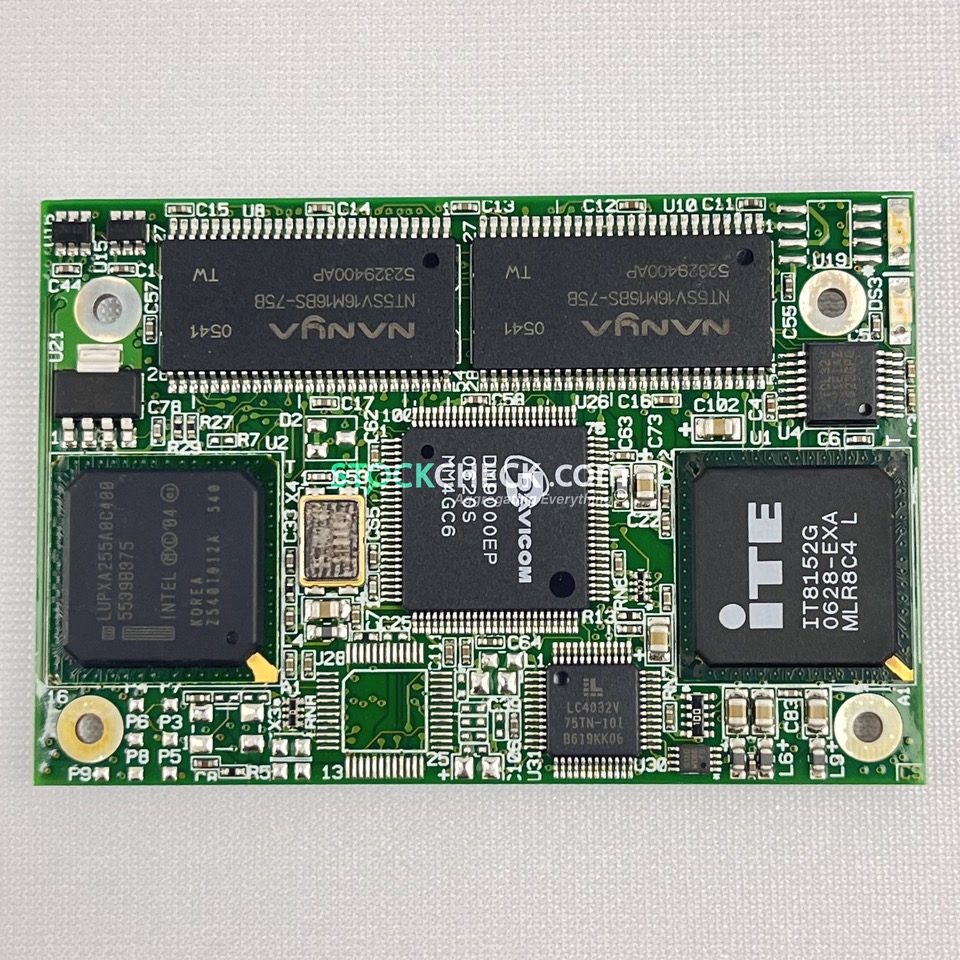

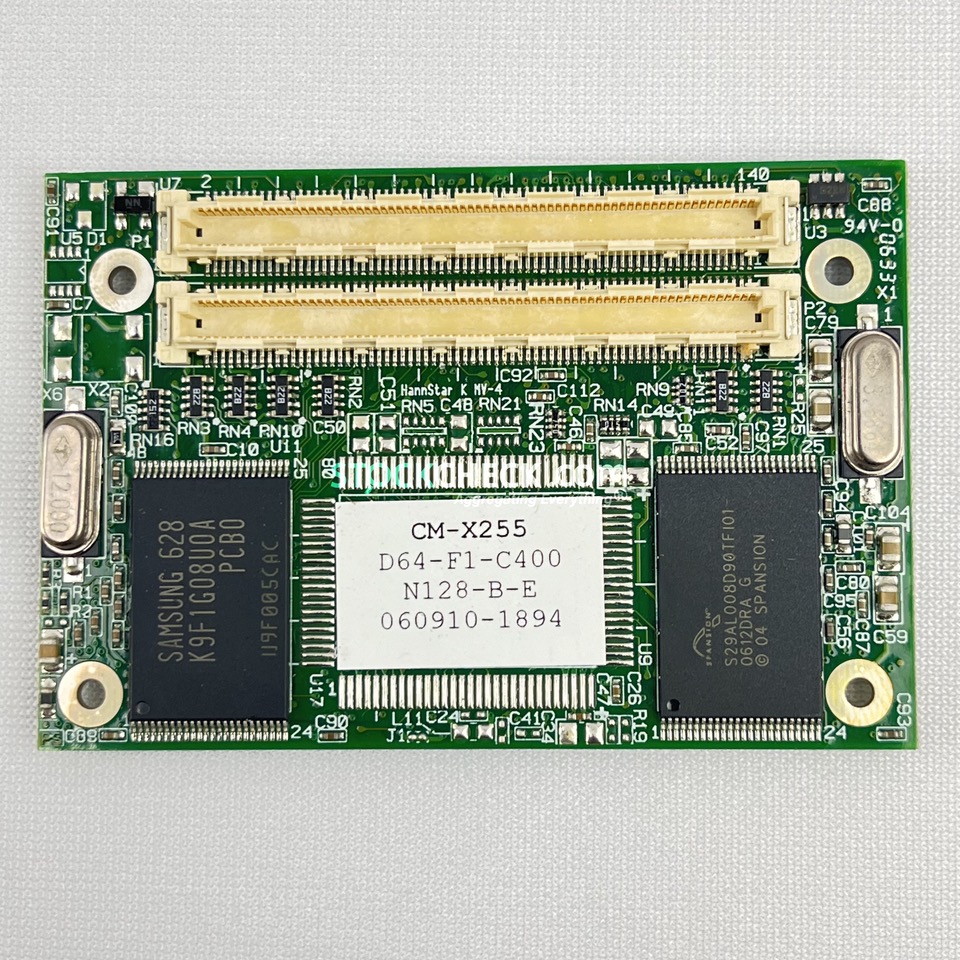

OverviewThe CM-X255 module is a tiny “system-on-module” computer, designed to serve as a building block in embedded applications. CM-X255 is advanced and backward-compatible version of original ARMCORE module, containing several significant improvements. The CM-X255 module has all the components needed to run operating systems such as Linux and Windows CE. Ready packages for these operating systems are available from CompuLab.The CM-X255 is both small and inexpensive. Its small size allows integration into hand-held and mobile applications, providing a powerful computing core. Its exceedingly low price makes it an ideal selection for cost-sensitive applications. Based on Intel’s XScale architecture, the CM-X255 delivers a price/performance ratio significantly better than available from x86-based counterparts.The feature set of the CM-X255 module combines a 32-bit CPU, SDRAM, Flash Disk and vital computing peripherals. For embedded applications, the CM-X255 provides a 32-bit PCI bus, 100Mbit Ethernet, serial ports, general purpose I/O lines and many other essential functions.Standardized CAMI (“CompuLab’s Aggregated Module Interface”) connectors of CM-X255 module allow interchangeability with other CORE modules, enabling the flexibility required in a dynamic market where application requirements can change rapidly.
Key FeaturesFull-featured Single Board Computer on module Basic configuration price below $50 ! Intel’s XScale PXA255 CPU, up to 400 MHz, 32+32 KB cache General purpose bus and optional PCI, LPC, AC97 busses 16 – 64 Mbyte SDRAM 1 – 512 Mbyte Flash Disk Graphics Controller for STN and TFT panels PCMCIA controller Sound codec with speaker and microphone support (optional) Touchscreen Controller (optional) Slave and host USB ports (optional) Standard peripherals: serial ports, LPT port, I/O ports, FDC, PS/2 keyboard and mouse, IrDA, HDD interface (optional) 10/100BaseT Ethernet port (optional) Power consumption below 1W 66 x 44 mm size Interchangeable with other CORE modules via CAMI connectors SBC-X255 – turns the CM-X255 module into a PC/104+ single board computer
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Compulab
View Compulab profile
Product group
Computer-on-Module
Explore Computer-on-Module
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
Green Eagle Logistics
CM-X255
Verified marketplace seller
176 items available
175 New (Surplus) - Never used, not in Original Pack: $300.00
1 New - Original Factory Packaging:
