What is Basler Electric DECS-250-LN1CN1N?

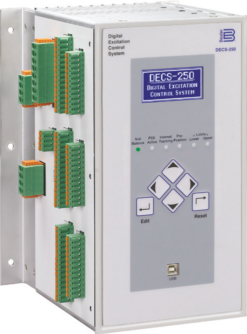

Basler Electric DECS-250-LN1CN1N Digital Excitation Control System The DECS-250 is a complete digital excitation control system. Total control in a compact package provides precise voltage, var, and Power Factor regulation, and exceptional system response, plus generator protection. An optional powe...
Product details
Manufactured byBasler Electric
Product groupDigital Excitation Control System
DescriptionBasler Electric DECS-250-LN1CN1N Digital Excitation Control System
OverviewThe DECS-250 is a complete digital excitation control system. Total control in a compact package provides precise voltage, var, and Power Factor regulation, and exceptional system response, plus generator protection. An optional power system stabilizer helps ensure compliance with stringent grid code requirements. The DECS-250 offers extreme flexibility and total functionality in a cost-effective, easy-to-use package.
Key FeaturesPrecise excitation control for synchronous generator or synchronous motor applications. True RMS sensing, single-phase or three-phase voltage and current Full generator metering capabilities Automatic Voltage Regulation / Field Current Regulation / Field Voltage Regulation, Power Factor and var modes of operation Integrated Generator Protection (27/59, 81O/U, 32R, 40Q), EDM, 59F, 51F, Loss of PMG, Field Short Circuit, and 25 Sync Check Load sharing over Ethernet Auto tuning feature with two PID stability groups Optional integrated power system stabilizer (PSS), IEEE Std. 421.5 type PSS2A/2B/2C Configurable Protection Conformal coating is applied to certain internal circuitry for additional protection and reliability Overexcitation Limiting (with temperature compensation) Underexcitation Limiting Stator Current Limiting (with temperature compensation) Var Limiting Underfrequency Limiting or V/Hz Limiting Exciter Diode Monitoring Trending, Oscillography, and Sequence of Events Recording Sixteen Programmable Contact Inputs Twelve Programmable Contact Outputs I/O Expansion Module compatibility- AEM-2020 Analog Expansion Module- CEM-2020 Contact Expansion Module
