Avionics Interface Technologies VXI-1553 overview
Avionics Interface Technologies VXI-1553 MIL-STD-1553 Interface Card AIT’s VXI1553 module is a versatile, full-featured C-size VXIbus board designed for testi...
Manufactured byAvionics Interface Technologies
Part number or familyVXI-1553
Product groupMIL-STD-1553 Interface Card
Product details
Manufactured byAvionics Interface Technologies
Product groupMIL-STD-1553 Interface Card
DescriptionAvionics Interface Technologies VXI-1553 MIL-STD-1553 Interface Card

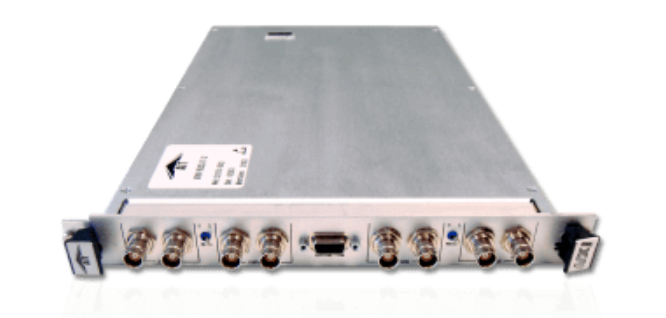

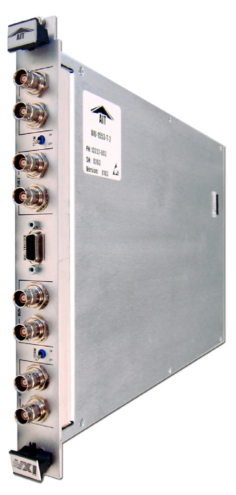

OverviewAIT’s VXI1553 module is a versatile, full-featured C-size VXIbus board designed for testing, simulation and monitoring MIL-STD-1553A/B avionics applications. One or two independent, dual-redundant MIL-STD-1553A/B databus streams can be configured on a single 1553 module. Each dual-redundant MIL-STD-1553 interface can independently and simultaneously simulate a Bus Controller (BC), up to 31 Remote Terminals (RTs), and provides a selectable, triggerable Bus Monitor (BM) for each bus.AIT’s VXI1553 module utilizes a simple, reliable, high performance FPGA-based hardware architecture and the highest data throughput in the industry on a flexible platform that can be easily adapted to meet a wide range of application needs. The VXI1553 boards are configured with 128 MBytes banks of onboard memory, providing ample capacity to support high volumes of data and complex simulations.An onboard IRIG-B time code decoder and generator allows users to accurately synchronize single or multiple VXI1553 boards to a common time source. AIT’s VXI1553 offers both software programmable transformer and direct coupling on the front panel to the data buses. The VXI1553 features Twinax BNC bus and stub connectors for easy integration.The VXI1553 is bundled with a VXI ‘Plug & Play’ driver software package. Application software can access the VXI1553 board using AIT’s high-level application programmer’s interface supporting C/C++, and LabView/LabWindows development environments.
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
Avionics Interface Technologies
View Avionics Interface Technologies profile
Product group
MIL-STD-1553 Interface Card
Explore MIL-STD-1553 Interface Card
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
Green Eagle Logistics
VXI-1553
Verified marketplace seller
2 items available
2 New - Original Factory Packaging: $119000.00
