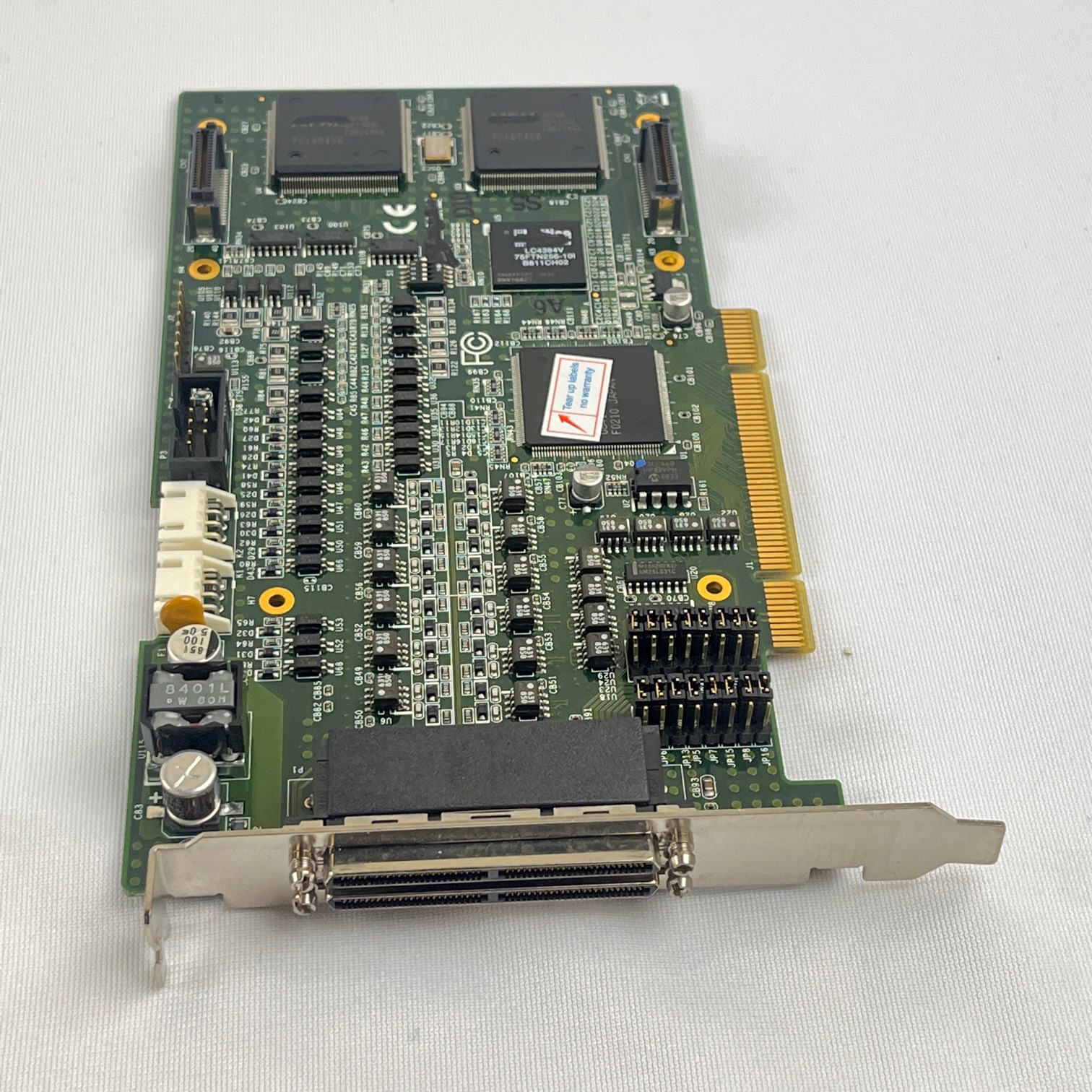

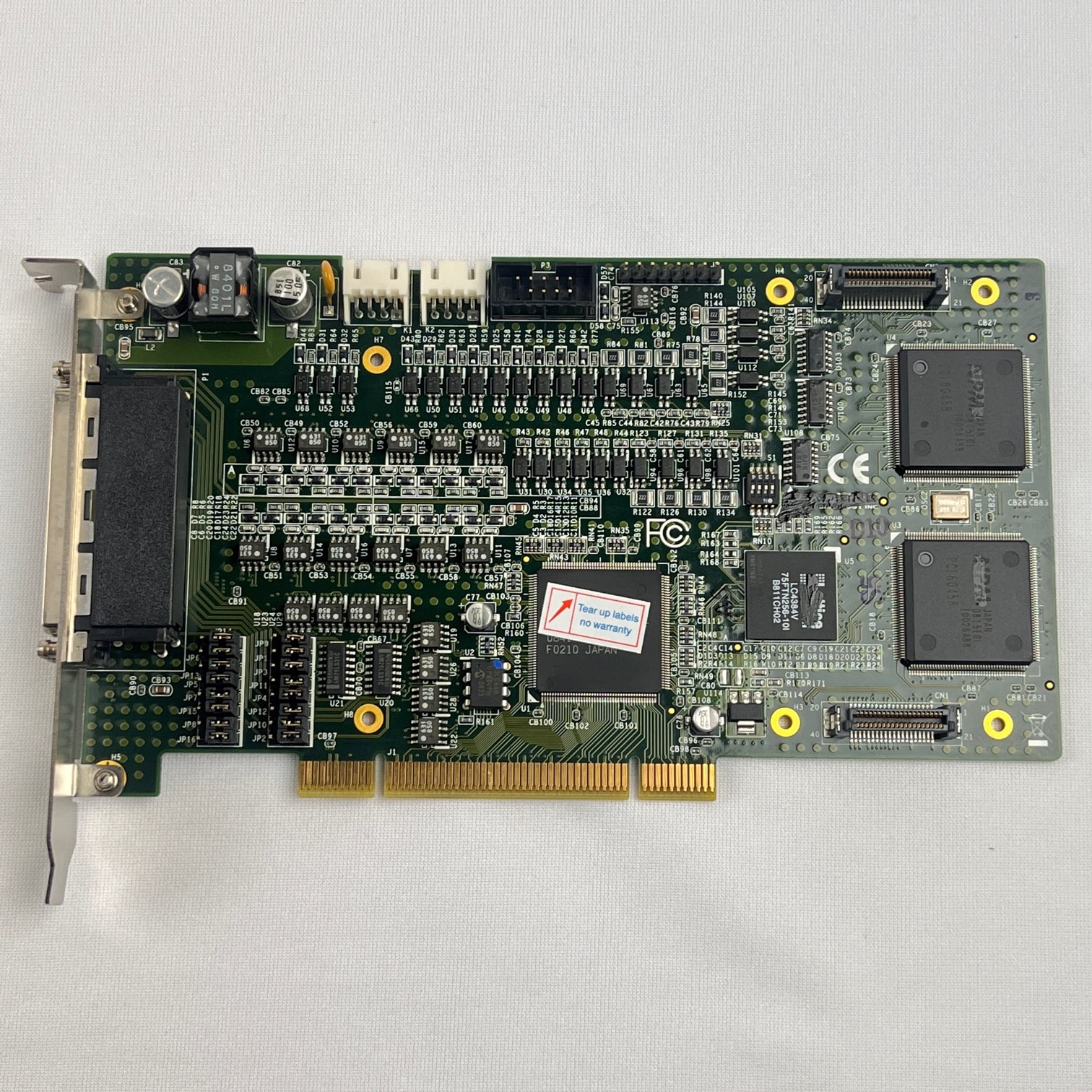

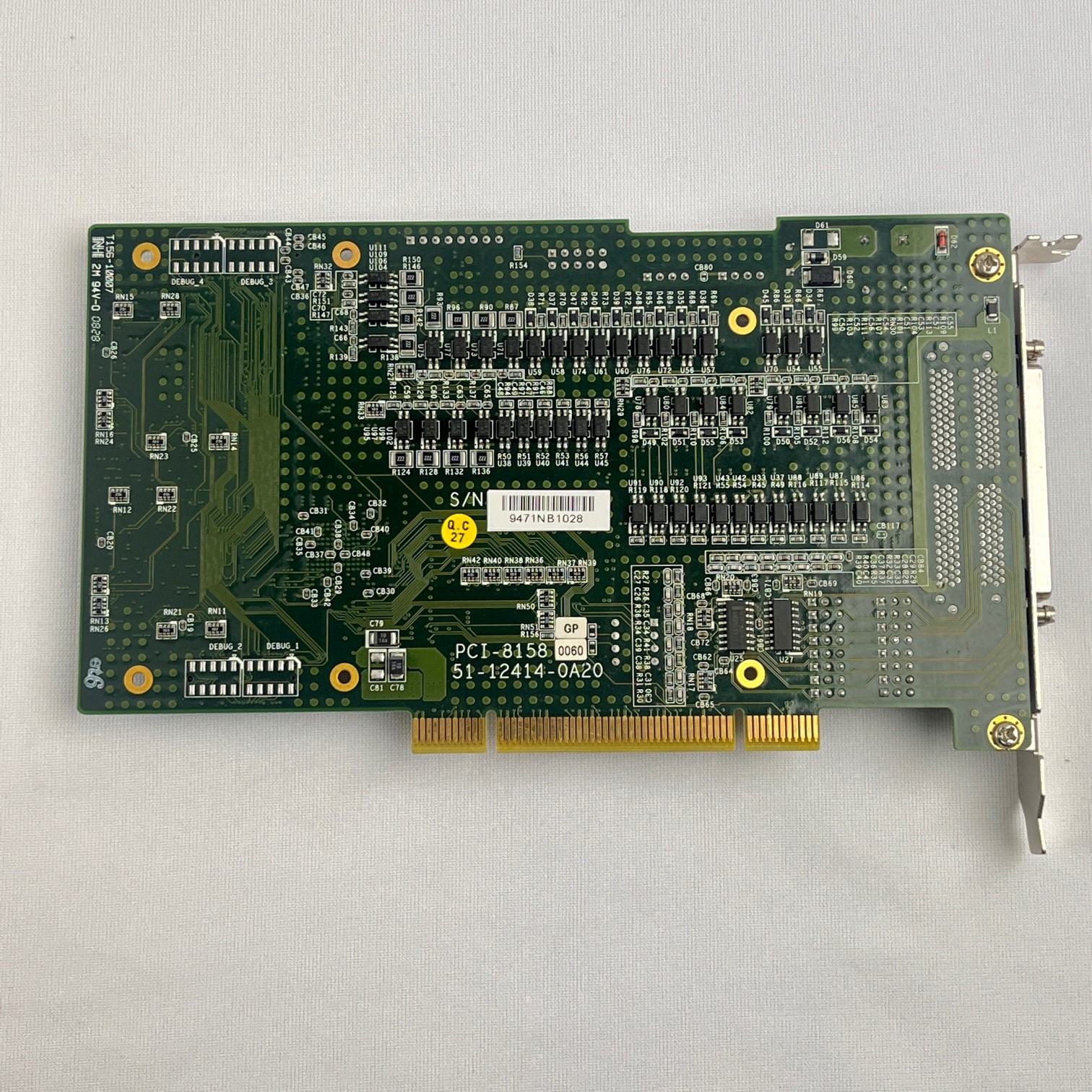

Adlink Technology PCI-8158 overview
Adlink PCI-8158 Advanced 8-AXIS Motion Controller ADLINK PCI-8158 is an advanced 8-axis motion control card. Compared with the PCI-8132/34 series, PCI-8158 offe...
Product details
Manufactured byAdlink Technology
Product type8-axis Motion Controller
DescriptionAdlink PCI-8158 Advanced 8-AXIS Motion Controller
OverviewADLINK PCI-8158 is an advanced 8-axis motion control card. Compared with the PCI-8132/34 series, PCI-8158 offers better linear and circular interpolated move and continuous contouring performance-ideal for advanced pulse train motion control solutions and complicated motion and pick-and-place applications. With DB accessories, users can extend the functionality to high-speed triggering, distributed I/O control or ECAM control.
Key Features32-bit PCI bus, Rev. 2.2, 33MHz High density (200-pin) 8-axis motion controller Pulse output rate up to 6.55MHz Pulse output options: OUT/DIR, CW/CCW, AB Phase 2~4 axes linear interpolation 2 axes circular interpolation Multi-axis continuous interpolation Position/speed change on-the-fly 13 home return modes and auto home search Hardware-controlled position compare and trigger (with DB-8150, up to 1MHz) ECAM (Electronic CAM) Control (with DB-8152) One HSL network support (with DB-8151) High speed position latch function Programmable acceleration and deceleration time Trapezoidal and S-curve velocity profiles 28-bit up/down counter for incremental encoder Multi-axis, simultaneous start/stop Programmable interrupt sources Supports up to 12 cards in one system Hardware backlash compensator Softwares limit function Hardware emergency input Security protection for user's program Easy interface to any stepping motors, AC or DC servo, linear or rotary motors All digital inputs and outputs are 2500VRMS isolated Manual pulser input interface More than 100 thread safe API functions
Typical ApplicationsSemiconductor front & back end equipment TFT/LCD manufacturing equipment Electronic Assembly and Testing equipment Automatic Optical Inspection Equipment Flight/Vehicle Simulator in military and video game Dispenser Machinery Cutting or Carving Machinery
