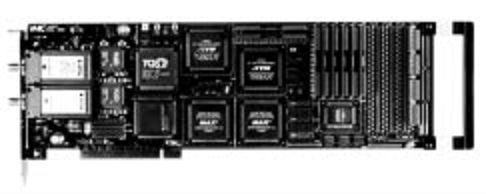

General Electric VMIPCI-5588 overview
VMIC VMIPCI-5588 Reflective Memory Module | High-Speed Fiber-Optic Reflective Memory with InterruptsVMIPCI-5588 is a high-performance, daisy-chained PCI-to-PCI ...
Manufactured byGeneral Electric
Part number or familyVMIPCI-5588
Product groupHigh-Speed Fiber-Optic Reflective Memory Modules
Product details
Manufactured byGeneral Electric
Product groupHigh-Speed Fiber-Optic Reflective Memory Modules
DescriptionVMIC VMIPCI-5588 Reflective Memory Module | High-Speed Fiber-Optic Reflective Memory with InterruptsVMIPCI-5588 is a high-performance, daisy-chained PCI-to-PCI network. Data is transferred by writing to on-board global RAM. The data is automatically sent to the location in memory on all Reflective Memory boards on the network. The Reflective Memory network can include both PCI and VME systems. Data can be shared in VMEbus systems with the network-compatible VMIVME-5588.Features High-speed, easy-to-use fiber-optic network (1.2 Gbaud serially) Data written to memory in one node is also written to memory in all nodes on the network Up to 256 nodes Connection with multimode fiber up to 1,000 ft; single-mode fiber up to 10 km or twinax cable up to 30 m Data transferred at 29.5 Mbyte/s without redundant transfer Data transferred at 14.8 Mbyte/s with redundant transfer Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command Error detection Redundant transmission mode for suppressing errors No processor overhead No processor involvement in the operation of the network Up to 16 Mbyte of Reflective Memory D32:D16:D8 memory access Single PCI 5 V slot, standard long card PCI target data bursts supported with 44 Mbyte/s transfer rates PCI master DMA controller (optional). DMA transfer rates of 132 Mbyte/s maximum and 33 Mbyte/s sustained. Configurable endian conversions for multiple CPU architectures on the network Communication link compatible with VMIVME-5588 and VMIPMC-5588 Software-addressable digital output bit available at output connector for use with optical switch board or any user-defined purpose Windows NT® OS driver available which operates the VMIPCI-5588 as a network interface board. Allows TCP/IP and other protocol connectivity on a network of VMIPCI-5588 or VMIVME-5588 nodes.
DescriptionVMIC VMIPCI-5588 High-Speed Fiber-Optic Reflective Memory with Interrupts
Key FeaturesHigh-speed, easy-to-use fiber-optic network (1.2 Gbaud serially) Data written to memory in one node is also written to memory in all nodes on the network Up to 256 nodes Connection with multimode fiber up to 1,000 ft; single-mode fiber up to 10 km or twinax cable up to 30 m Data transferred at 29.5 Mbyte/s without redundant transfer Data transferred at 14.8 Mbyte/s with redundant transfer Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command Error detection Redundant transmission mode for suppressing errors No processor overhead No processor involvement in the operation of the network Up to 16 Mbyte of Reflective Memory D32:D16:D8 memory access Single PCI 5 V slot, standard long card PCI target data bursts supported with 44 Mbyte/s transfer rates PCI master DMA controller (optional). DMA transfer rates of 132 Mbyte/s maximum and 33 Mbyte/s sustained. Configurable endian conversions for multiple CPU architectures on the network Communication link compatible with VMIVME-5588 and VMIPMC-5588 Software-addressable digital output bit available at output connector for use with optical switchboard or any user-defined purpose Windows NT® OS driver available which operates the VMIPCI-5588 as a network interface board. Allows TCP/IP and other protocol connectivity on a network of VMIPCI-5588 or VMIVME-5588 nodes.
OverviewVMIPCI-5588 is a high-performance, daisy-chained PCI-to-PCI network. Data is transferred by writing to onboard global RAM. The data is automatically sent to the location in memory on all Reflective Memory boards on the network. The Reflective Memory network can include both PCI and VME systems. Data can be shared in VMEbus systems with the network-compatible VMIVME-5588.
Manufacturer, product group, and supply
See who makes this product, where it belongs, and where available inventory may be listed.
Manufactured by
General Electric
View General Electric profile View Computer Dynamics profile View GE Intelligent Platforms profile
Product group
High-Speed Fiber-Optic Reflective Memory Modules
Explore High-Speed Fiber-Optic Reflective Memory Modules
Available from
1 marketplace offer
Compare sellers and inventory
Where to buy
Total 1 item.
Green Eagle Logistics
VMIPCI-5588
Verified marketplace seller
13 items available
7 Certified Pre-Owned: $4895.00
