PCOM-B886

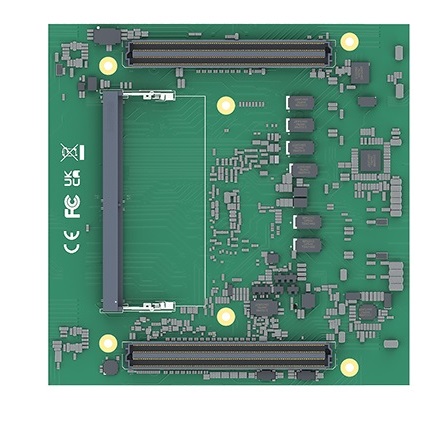

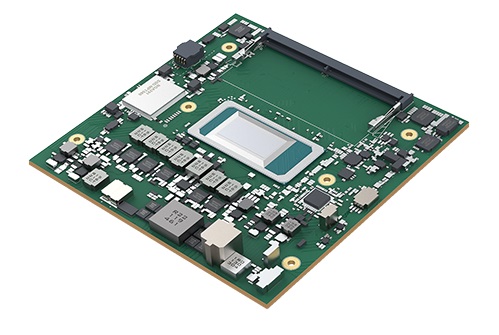

Portwell PCOM-B886 COM-HPC Client

Description:	Portwell PCOM-B886 COM-HPC Client
Key Features:	COM-HPC® Client Type, Size B Intel® Core™ Ultra 200H/200U Series processors (formerly Arrow Lake-H/Arrow Lake-U) with integrated NPU for dedicated AI acceleration Up to 96GB DDR5 non-ECC 6400 MT/s on two SO-DIMM sockets 1x PCIe Gen 5 x8, 2x PCIe Gen 4 x4, 12x PCIe Gen 4 x1 2x 2.5GbE via Intel® Ethernet Controller I226 series 2x USB4, 2x USB3.2 Gen 2, 8x USB2.0, 2x SATA, 3x DDI (DP), eDP
Brands:	Portwell
Categories:	CPU Boards, COM-HPC Client

#	File Name	Size	Type	Added By	Date Created
1	portwell_pcom-b886_com-hpc_client_image1-218010	66,893 KB	image/jpeg	John Paul	04/30/2025 17:58:48
2	portwell_pcom-b886_com-hpc_client_image2-218011	53,724 KB	image/jpeg	John Paul	04/30/2025 17:58:48
3	portwell_pcom-b886_com-hpc_client_image3-218012	63,834 KB	image/jpeg	John Paul	04/30/2025 17:58:48
4	Datasheet	1,623,790 MB	application/pdf	John Paul	04/30/2025 17:59:36
