PCOM-B887

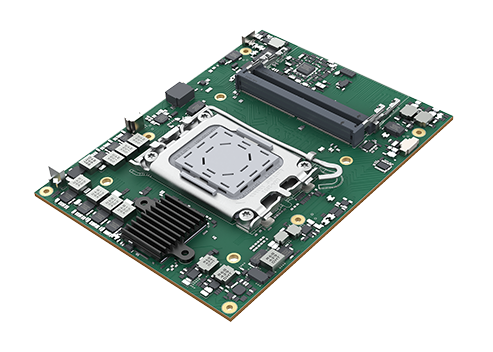

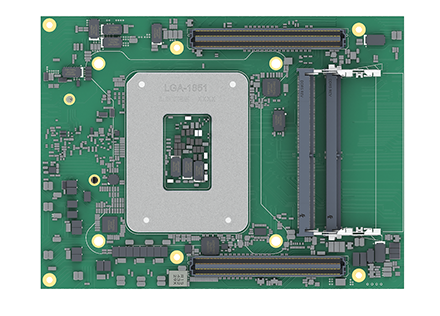

Portwell PCOM-B887 COM-HPC Client

Description:	Portwell PCOM-B887 COM-HPC Client
Key Features:	COM-HPC® Client type, size C module Intel® Core™ Ultra Processors (Series 2) (formerly Arrow Lake-S) with integrated NPU for dedicated AI acceleration 4x DDR5 ECC/non-ECC 4800 MT/s up to 192GB 2x 2.5GbE via Intel® Ethernet Controller I226 series 1x PCIe Gen5 x16, 1x PCIe Gen5 x4, 3x PCIe Gen4 x4, 1x PCIe Gen4 x2, 8x PCIe Gen4 x1 1x USB4, 3x USB3.2 Gen2, 8x USB 2.0, 2x SATA, 3x DDI (DP), eDP
Brands:	Portwell
Categories:	CPU Boards, COM-HPC Client

#	File Name	Size	Type	Added By	Date Created
1	portwell_pcom-b887_com-hpc_client_image1-217928	226,583 KB	image/png	John Paul	04/30/2025 15:22:09
2	portwell_pcom-b887_com-hpc_client_image2-217929	153,469 KB	image/png	John Paul	04/30/2025 15:22:09
3	portwell_pcom-b887_com-hpc_client_image3-217930	197,836 KB	image/png	John Paul	04/30/2025 15:22:09
4	Datasheet	1,354,113 MB	application/pdf	John Paul	04/30/2025 17:07:39
