Lattice Semiconductor ispLSI 3160 overview
Lattice Semiconductor ispLSI 3160 In-System Programmable High-Density PLD The ispLSI 3160 is a High-Density Programmable Logic Devices containing 320 Registers,...
Manufactured byLattice Semiconductor
Part number or familyispLSI 3160
Product groupIn-System Programmable High-Density PLD
Product details
Manufactured byLattice Semiconductor
Product groupIn-System Programmable High-Density PLD
DescriptionLattice Semiconductor ispLSI 3160 In-System Programmable High-Density PLD

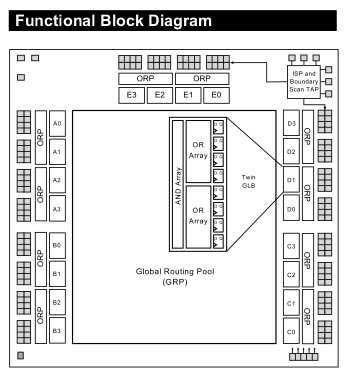

OverviewThe ispLSI 3160 is a High-Density Programmable Logic Devices containing 320 Registers, 160 Universal I/O pins, five Dedicated Clock Input Pins, five Output Routing Pools (ORP) and a Global Routing Pool (GRP) which allows complete inter-connectivity between all of these elements. The ispLSI 3160 features 5V in-system pro- grammability and in-system diagnostic capabilities. The ispLSI 3160 offers non-volatile reprogrammability of the logic, as well as the interconnect to provide truly reconfigurable systems.The basic unit of logic on the ispLSI 3160 device is the Twin Generic Logic Block (Twin GLB) labelled A0, A1...E3. There are a total of 20 of these Twin GLBs in the ispLSI 3160 device. Each Twin GLB has 24 inputs, a program- mable AND array and two OR/Exclusive-OR Arrays, and eight outputs which can be configured to be either com- binatorial or registered. All Twin GLB inputs come from the GRP.
