60T Series

Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...

Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...
Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...Emerson, Therm-O-Disc 60T Series Snap-Action Tempe...
Description:

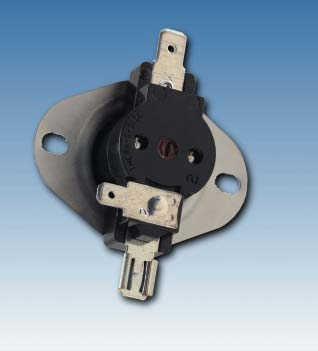

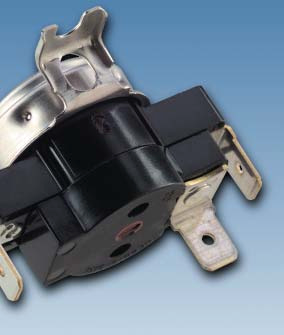

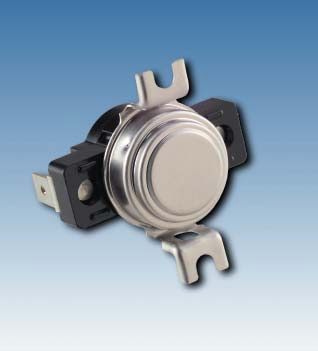

Emerson Therm-O-Disc 60T Series Snap-Action Temperature Controls

Overview:

The 60T line of 3/4” (19mm) bimetal disc temperature controls from Therm-O-Disc offers proven reliability in a versatile, cost-effective design. The snap-action of the temperature sensing bimetal disc provides high-speed contact separation, resulting in exceptional life characteristics at electrical loads up to 25 amps at 240VAC. A wide variety of terminal and mounting configurations are available for maximum design flexibility. This unsurpassed flexibility and time proven reliability, at an affordable price, has made the Therm-O-Disc 60T the most popular and widely applied temperature control in the major appliance and heating/air conditioning industries.

Key Features & Benefits:
  • Available with automatic and manual reset SPST (Single Pole, Single Throw) or automatic reset SPDT (Single Pole, Double Throw) switch configurations.
  • Welded construction for integrity of current-carrying components.
  • Available with an exposed or enclosed bimetal disc for either increased thermal response or protection from airborne contaminants.
  • Switch Actions and Typical Applications:

    The 60T is available in three switch actions:

  • Automatic Reset SPST
  • Automatic Reset SPDT

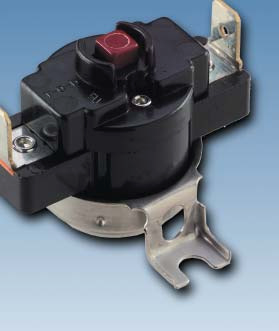

  • Manual Reset SPST (Trip Free)
  • Brands: Emerson, Therm-O-Disc
    Categories: Snap-Action Temperature Controls, Bimetal Disc Temperature Controls
    Pricing UOM Attributes: Piece/Unit
